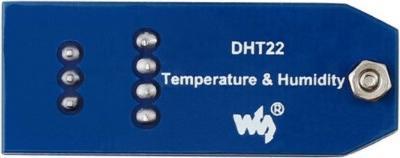

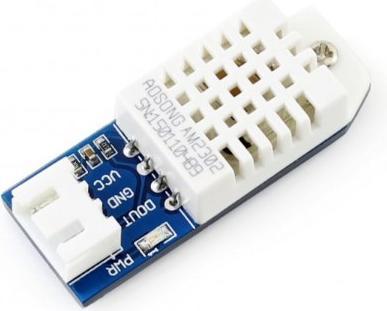

WaveShare DHT22 temperature and humidity sensor pluggable

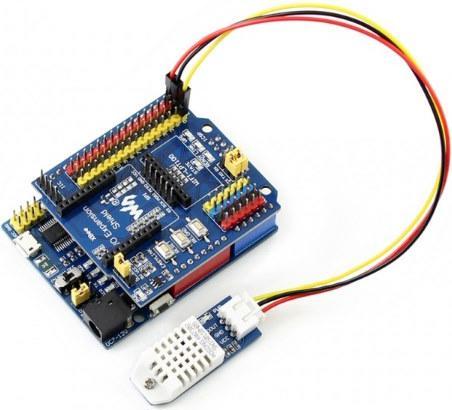

The DHT22 is equipped with a calibrated AM2302 sensor that allows for the measurement of temperature and humidity. Compared to the budget-friendly DHT11, the DHT22 offers higher accuracy and a wider measurement range. The sensor features an XH2.54mm connector, making it easy to connect your own crimped cables. The DHT22 is controlled via a digital 1-Wire interface, which simplifies operation with an Arduino or ESP8266. You can find a ready-made Arduino library for control in the Library Manager under "DHT Sensor Library." The board already has the necessary resistors installed, so you can simply plug the board into your Arduino and get started.

Application examples for the DHT22:

• Weather station
• Air duct
• Humidity controller
• Temperature controller
• Measuring room temperature and humidity
• Testing and detection device

Technical details:

• Model: DHT22 AM2302
• Operating voltage: 3.3VDC – 5.5VDC
• Requires only one pin (1-Wire)
• Humidity measurement range: 0% - 99.9% (2 to 5% measurement accuracy)
• Temperature measurement range: -40°C – 80°C (±0.5 °C measurement accuracy)
• Resolution: 0.1% rH/0.1 °C
• Response time: approx. 2s at highest resolution
• Dimensions: 40 x 16 x 10mm
• Weight: 8g

Scope of delivery:

• 1x DHT22 temperature and humidity sensor with plug
• 1x XH2.54mm to 1x3Pin Female Dupont cable 20cm.
