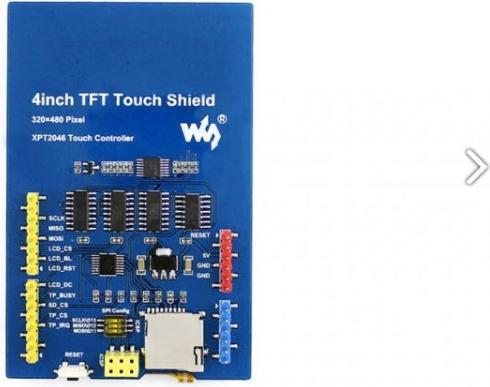

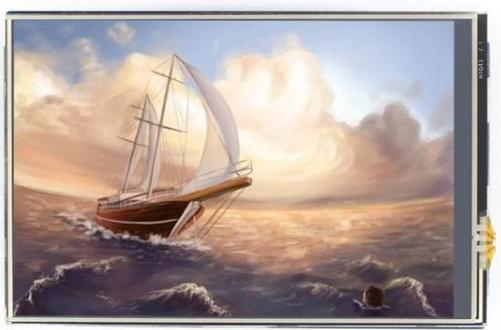

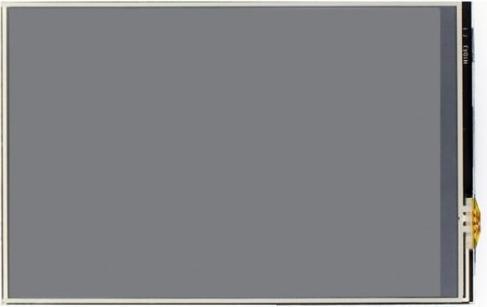

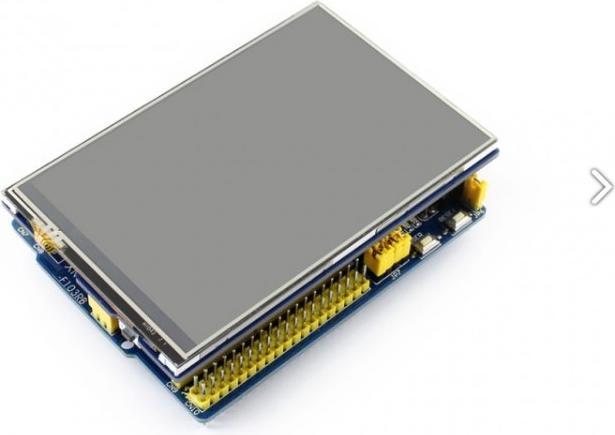

WaveShare 4inch TFT Touch Screen Shield for Arduino

Ratings
Delivered between Fri, 20.6. and Mon, 23.6.
More than 10 items in stock at third-party supplier
Supplied by

Product details

This practical large 4-inch TFT touch color display shield can be easily plugged onto your Arduino. With the shield, you can create an input interface to set data on the Arduino via touch. You can also use it to visually display measured values and graphs on the Arduino.

Features:

  • Display of up to 65,000 colors
  • Program examples for Arduino and STM32 available
  • Works with 3.3V and 5V logic
  • Compatible with Arduino UNO, Leonardo, UNO PLUS, NUCLEO, XNUCLEO
  • On-board touch controller can be easily read out via SPI
  • Micro SD card slot for saving images and data
  • Backlight controllable via program with PWM signal

Technical details:

  • LCD Type: TFT
  • Size: 4 inch
  • Resolution: 480x320
  • Interface: SPI
  • I/O voltage: 3.3 to 5V
  • Colors: RGB, 65k colors
  • Touch Screen Type: Resistive
  • Touch Controller: XPT2046
  • LCD Controller: ILI9486
  • Display dimensions: 84.3 x 56.5mm
  • Dimensions: 95 x 62 x 15mm
  • Weight: 80g

Scope of delivery:
1x 4-inch TFT Touch Screen Shield for Arduino.
