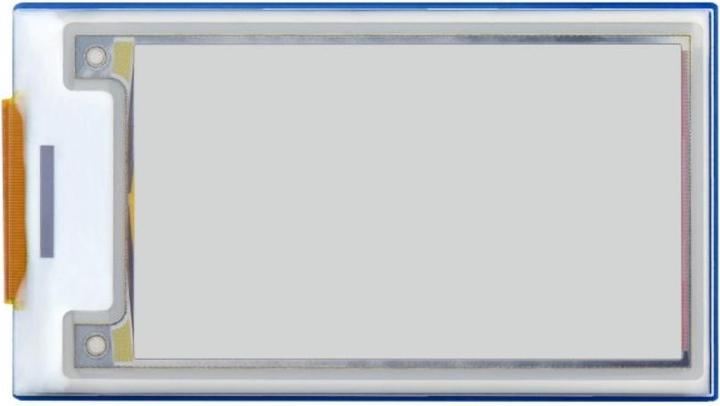

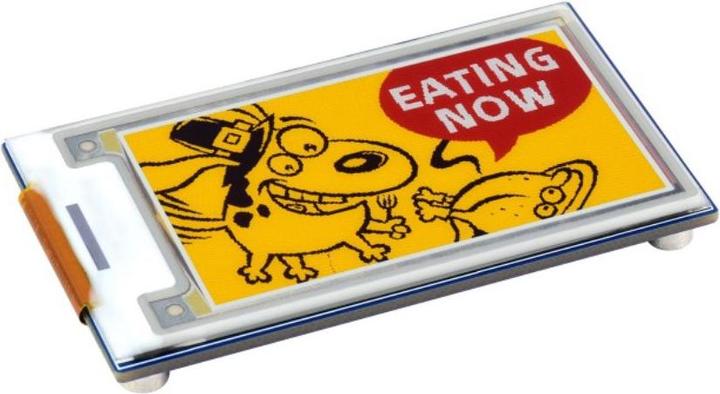

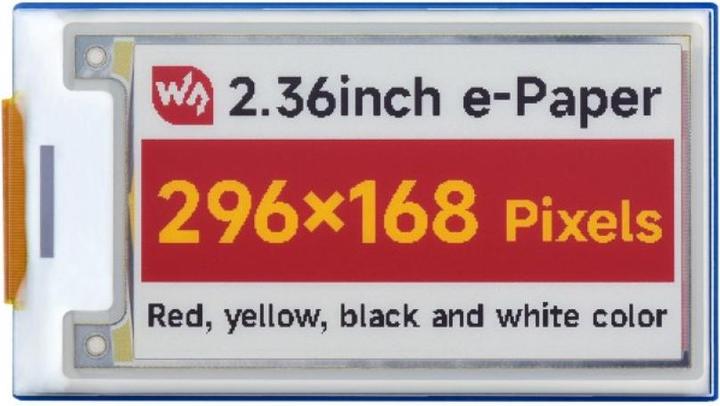

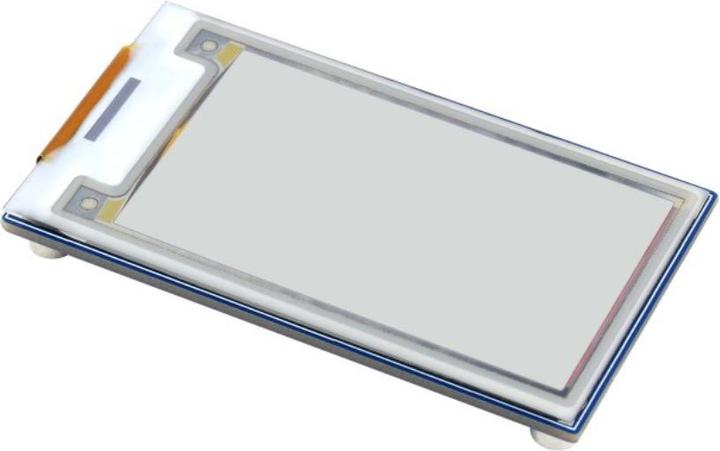

WaveShare 296x168 2.36inch 4-colour E-Ink Display

The 2.36-inch E-Paper module from Waveshare is an electronic paper display with a resolution of 296 × 168 pixels and four colors: Red, Yellow, Black, and White. It features low power consumption, a wide viewing angle, and a paper-like effect without power supply. It is ideal for price tags, shelf labels, industrial displays, and more. The module has an SPI interface that is compatible with various controller boards such as Raspberry Pi, Jetson Nano, Arduino, STM32, etc. It comes with development resources and a manual.

Technical Details:
Manufacturer: Waveshare
Manufacturer SKU: 23151
Display Size: 2.36 inches (52.096 x 29.568 mm)

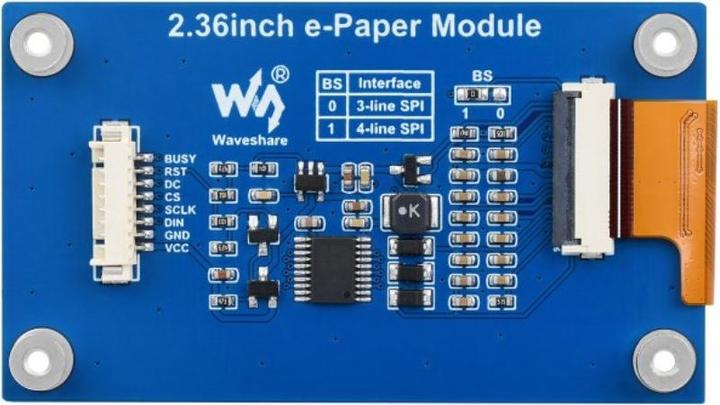

Display Communication Interface: 3-wire SPI, 4-wire SPI
Display Dot Pitch: 0.176 × 0.176 mm
Display Resolution: 296 x 168
Display Colors: Black, White, Yellow, Red
Display Grayscale: 2
Display Refresh Time: 12 s
Display Refresh Power: < 57 mW (typ.)
Display Viewing Angle: 170°
Operating Voltage: 3.3 V / 5 V (Both power supply and signal require 5 V)
Standby Current: < 0.01 µA (close to 0)
Dimensions: 69.5 x 39.5 x 7 mm
Weight: 34 g

Package Includes:
1x 296x168 2.36 inch 4-Color E-Ink Display
1x 8-Pin GH1.25 to Female Dupont Cable 20 cm.
