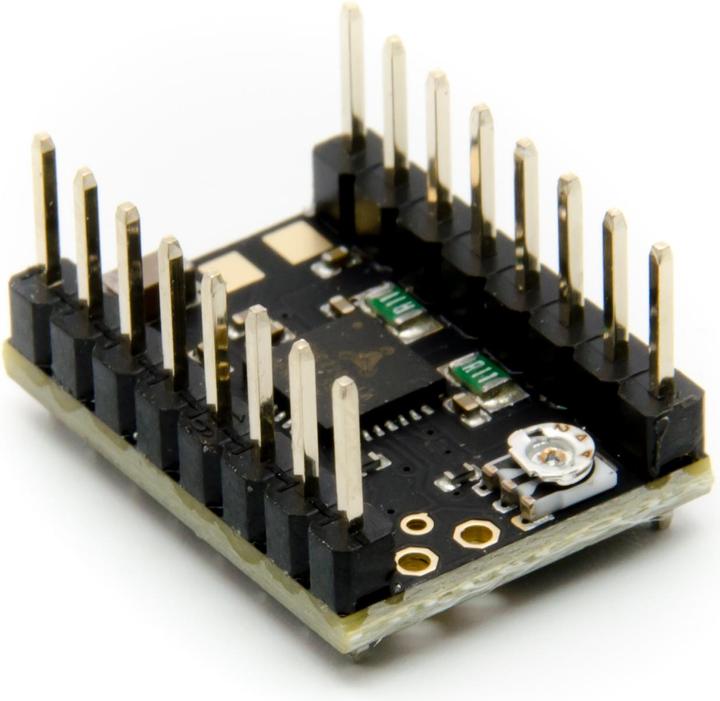

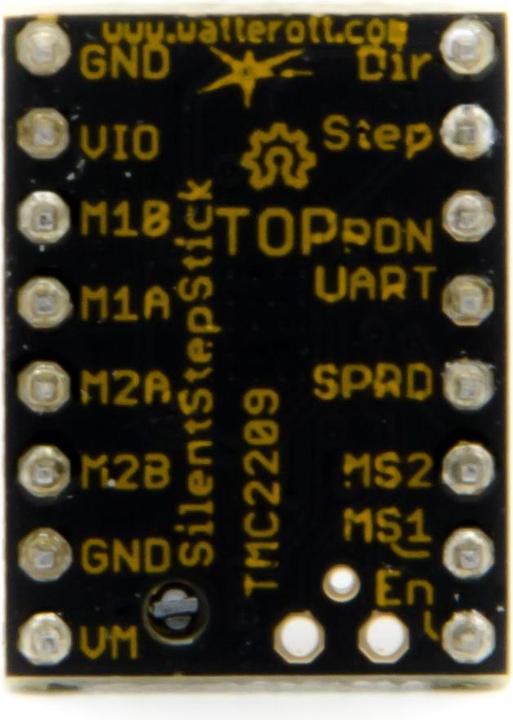

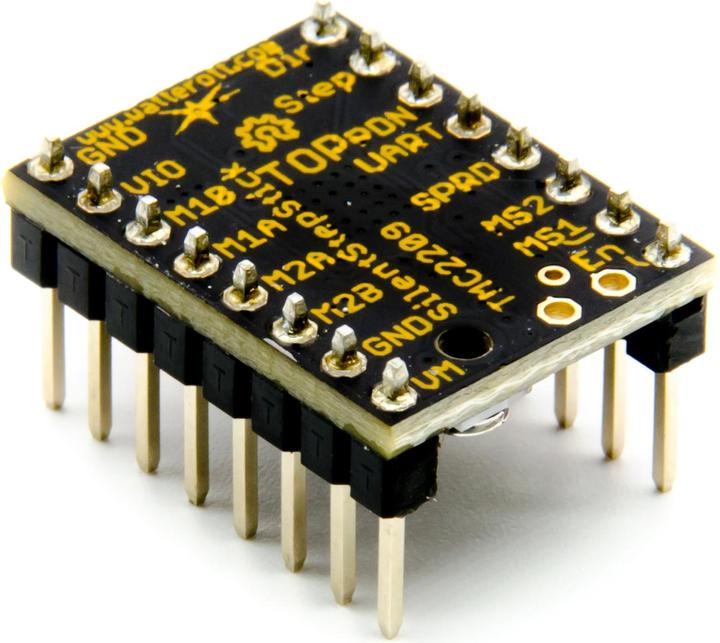

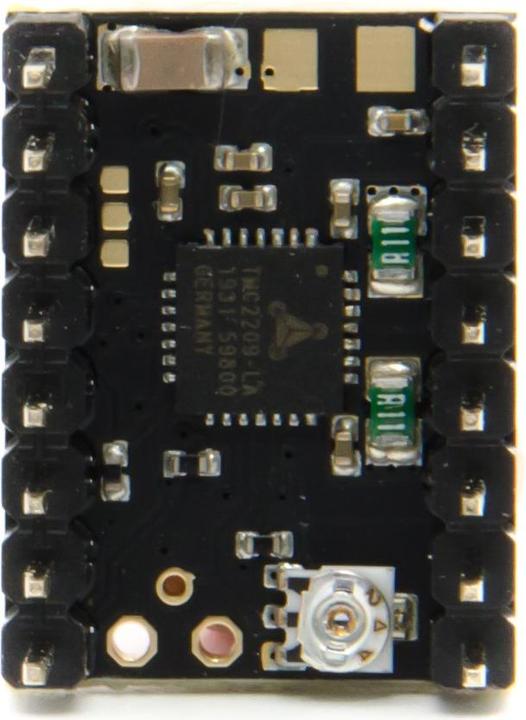

Watterott SilentStepStick TMC2209 V2

The SilentStepStick TMC2209 V2 from Watterott is a stepper motor driver based on the Trinamic TMC2209. With this new SilentStepStick driver, the noise development when driving with stepper motors is massively improved. The TMC2209 stepper motor driver is designed for up to 1.7A (RMS) continuous current and 2.8A peak. In order to be able to drive at these power levels, you also need to install a heat sink. This is not included in the delivery. The drivers also support micro stepping (interpolation of up to 256 microsteps) with which you can drive very fine and low-vibration movements.

Recommended accessories:
SilentStepStick Protector Protection for stepper motor drivers.
14.5x15x13mm SilentStepStick heat sink
9x9x12mm SilentStepStick heat sink

Features SilentStepStick TMC2209:
Perfect for driving the X, Y and Z linear axes and extruders of 3D printers
Easy configuration via CFG pins or UART interface
StealthChop2 mode for very quiet operation (default setting)
SpreadCycle mode for high dynamics and torque (can be activated via UART, OTP, CFG pin)
CoolStep automatic current adjustment
StallGuard4 sensorless motor load detection (suitable for sensorless homing)
Hardware compatible with StepStick, Pololu A4988 and DRV8825 drivers
Suitable for up to 2.8A peak current
Step/Dir interface with microstep function (interpolation of up to 256 microsteps)

Technical details:
Type: SilentStepStick TMC2209 V2
Manufacturer Board: Watterott
Manufacturer TMC2209 driver: Trinami
Motor voltage (VM): 5.5 to 28V DC
Logic voltage (VIO): 3 to 5V
RMS current (continuous current with heat sink): 1.7A
Peak current (short-time): 2.8A
Rsense: 110 mOhm
RDSon: 0.2 Ohm
Functions:
Standby current reduction: Yes
StealthChop: Yes
SpreadCycle: Yes
CoolStep: Yes
StallGuard: Yes
Dimension: 25 × 15 × 3mm
Weight: 4g

Scope of delivery:
1x SilentStepStick TMC2209 V2 soldered (heat sink not included).
