Watterott SilentStepStick TMC2208

Ratings
BrandMore from Watterott
Currently out of stock
Free shipping starting at 50.–

Product details

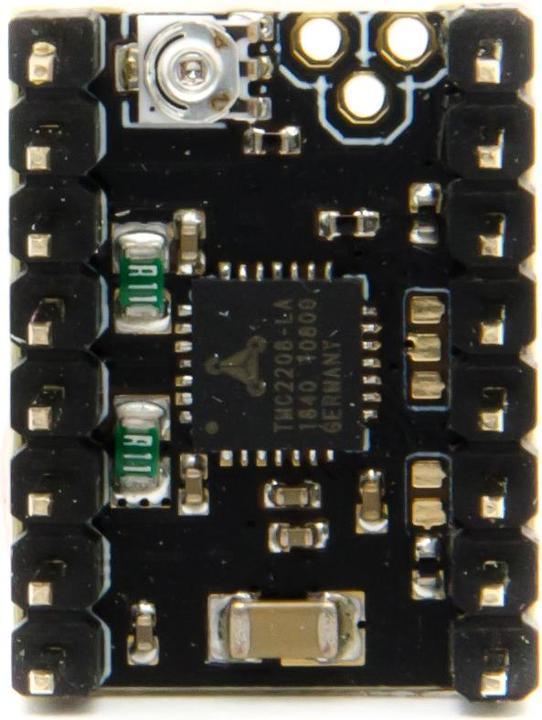

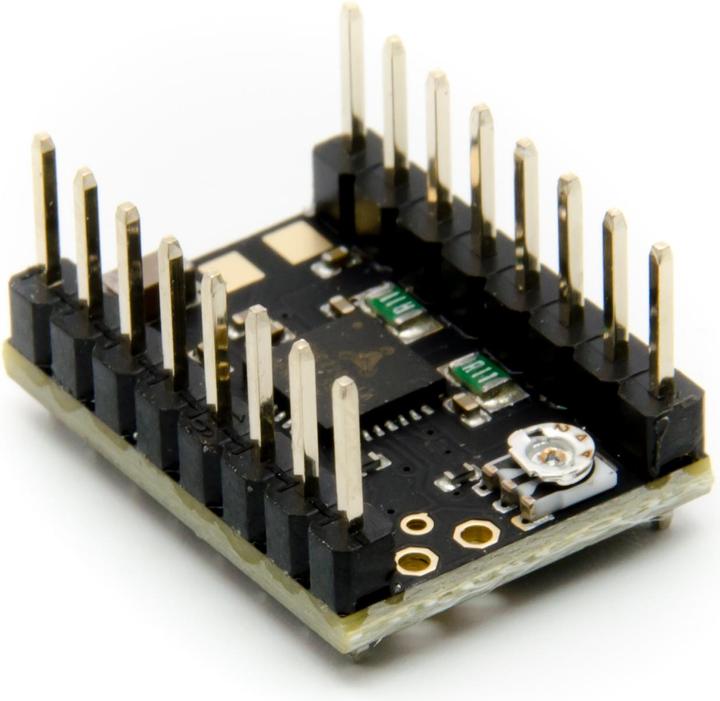

The SilentStepStick TMC2208 from Watterott is a stepper motor driver based on the Trinamic TMC2208. This new SilentStepStick driver significantly improves noise levels when operating stepper motors. The TMC2208 stepper motor driver is designed for continuous currents of up to 1.2 A (RMS) and peak currents of 2 A. To utilize these capabilities, you will need to install a heatsink, which is not included. The drivers also support microstepping (interpolation of up to 256 microsteps), allowing for very smooth and low-vibration movements.

The driver is suitable for the RAMPS 1.4 board or the Arduino CNC Shield and can be used in 3D printers as well as small CNC milling machines. You can also use it for other mechanical Arduino projects where you want to control stepper motors.

Recommended accessories:

  • 14.5 x 15 x 13 mm SilentStepStick heatsink
  • 9 x 9 x 12 mm SilentStepStick heatsink

Features of SilentStepStick TMC2208:

  • Perfect for driving the X, Y, and Z linear axes of 3D printers
  • Easy configuration via CFG pins or UART interface
  • StealthChop2 mode for very quiet operation (default setting)
  • SpreadCycle mode for high dynamics and torque (activatable via UART)
  • Hardware compatible with StepStick, Pololu A4988, and DRV8825 drivers
  • Suitable for up to 2 A peak current
  • Step/Dir interface with microstepping function (interpolation of up to 256 microsteps)

Technical details:

  • Type: SilentStepStick TMC2208
  • Manufacturer Board: Watterott
  • Manufacturer TMC2208 Driver: Trinamic
  • Motor Voltage (VM): 5.5 to 36 V DC
  • Logic Voltage (VIO): 3 to 5 V
  • RMS Current (continuous current with heatsink): 1.2 A
  • Peak Current (short-term): 2 A
  • Rsense: 110 mOhm
  • RDSon: 0.3 Ohm
  • Functions:
  • Standby current reduction: Yes
  • StealthChop: Yes
  • SpreadCycle: Yes
  • Dimensions: 25 × 15 × 3 mm
  • Weight: 4 g

Scope of delivery:
1 x SilentStepStick TMC2208 soldered (heatsink not included).
