Walther Werke Pin insert

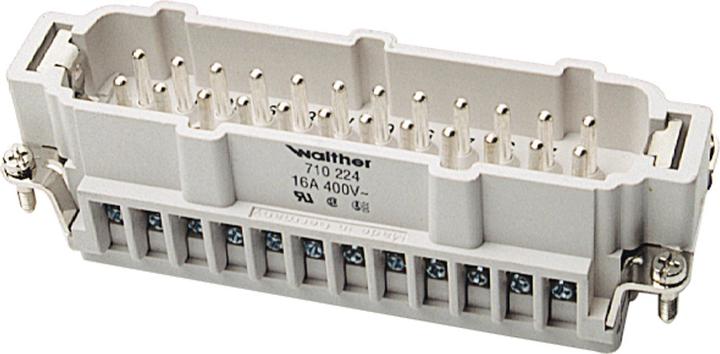

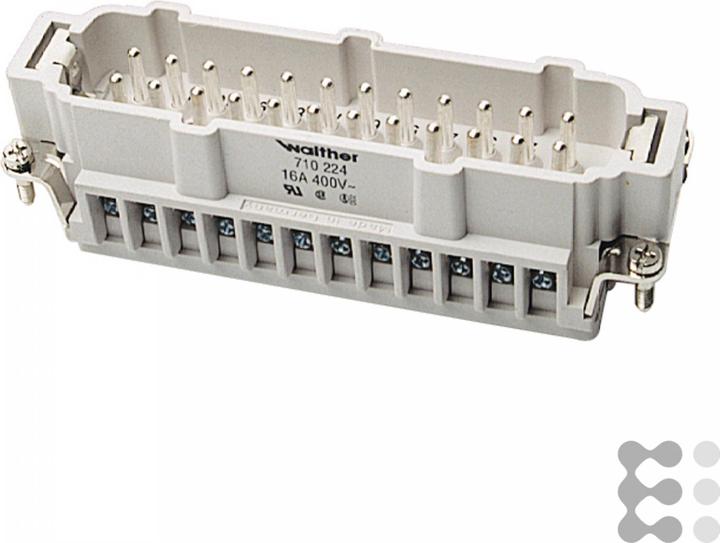

Walther Werke Pin insert 710224 Manufacturer: Walther Werke Designation: Pin insert B24 0,5-2,5 20-14AWG Type: 710224 Number of power contacts: 24 Contact insert without contacts: no Contact design: Pin Number of poles: 24 Material of connector insert: Thermoplastic Rated current In: 16 A Ambient temperature: -40..125 °C Operating temperature: -40..125 °C Rated voltage: 500 V Rated impulse voltage: 6 kV Overvoltage category: III Degree of pollution: 3 Electrical connection type: Screw connection With wire protection: yes Connectable fine-stranded conductor cross-section without wire end ferrule: 2.5 mm² Connectable fine-stranded conductor cross-section with wire end ferrule: 0 mm² Connectable conductor cross-section solid: 0 mm² Connectable conductor cross-section stranded: 2.5 mm² Material of contact coating: silver Material of contact insert: other Material of contact: other copper alloys Flammability class of insulation material according to UL 94: V0 With protective conductor: yes Min. Number of mating cycles: 500 Width: 111 mm Height: 35 mm Depth: 34 mm Walther Werke pin insert 710224: further details Pin insert of the B24 series with screw connection and wire protection Connection cross-section 0.5-2.5qmm (20-14AWG) , EAN: 4015609027392.
