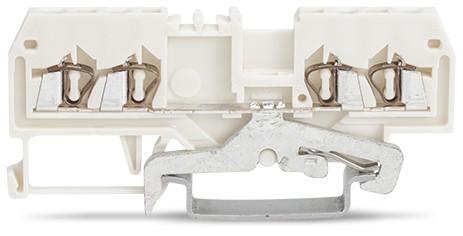

Wago Shield conductor clamp

WAGO GmbH & Co. KG shield conductor terminal 279-838

Manufacturer: WAGO GmbH & Co. KG
Designation: Shield conductor terminal
Conductors: 4 conductors, 1.5 mm²
Type: 279-838
PEN function possible: Yes
Connectable conductor cross-section (finely stranded without ferrule): 0.08 - 1.5 mm²
Connectable conductor cross-section (solid): 0.08 - 1.5 mm²
Connectable conductor cross-section (stranded): 0.08 - 1.5 mm²
Electrical connection version 1: Spring-cage connection
Electrical connection version 2: Spring-cage connection
Number of levels: 1
Number of terminals per level: 4
Mounting type: Top-hat rail TH35
Insulator material: Thermoplastic
Operating temperature: 105 °C
Flammability class of the insulating material according to UL 94: V0
Width: 4 mm
Height: 73 mm
Depth: 27 mm
End plate required: Yes
Colour: White

WAGO GmbH & Co. KG shield conductor clamp 279-838:
4-wire shield conductor clamp, 1.5 mm², centred labelling for mounting rail 35 x 15 and 35 x 7.5, CAGE CLAMP® 1.50 mm², white.
