Wago Relay plug

Ratings
BrandMore from Wago
Delivered between Fri, 20.11. and Fri, 4.12.
More than 10 items ordered
free shipping

Electric current output2

Show all

Product details

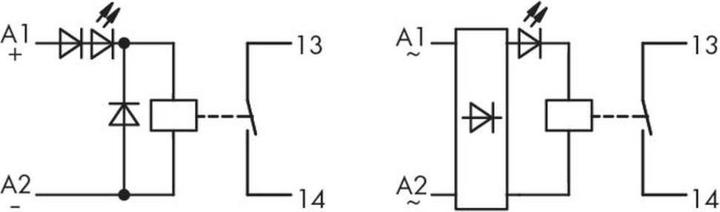

WAGO GmbH & Co. KG relay plug 286-364

Manufacturer: WAGO GmbH & Co. KG
Designation: Relay plug 24 VDC, 1 NO contact
Type: 286-364
Design of electrical connection: Plug-in connection
With detachable terminals: No
Rated current: 5 A
Rated control supply voltage Us at DC: 24 V
Voltage type for actuation: DC
Drive, polarity: Polarised
Switching behaviour of the drive: Monostable
Number of contacts as normally open: 1
With positively driven contacts: No
Type of switching contact: Single contact
Complete device with base: No
With LED display: Yes
Material of contact coating: Tin
Protection class (IP): IP20
Width: 10 mm
Height: 70.2 mm
Depth: 52 mm

Further details:
Relay module
Rated input voltage: DC 24 V
1 NO contact
Continuous current limit: 5 A
Status indicator: Red
Width: 10 mm
Colour: Grey
EAN: 40454524968.

Key specifications

Relay type
Switching relay
Electric current output
5000 mA
Output current type
DC
Number of poles
1x

General information

Item number
36765439
Manufacturer
Wago
Category
Relays
Manufacturer No.
286-364
Release date
28.6.2023

Relay properties

Relay type
Switching relay
Electric current output
5000 mA
Output current type
DC
Switching function
Normally open
Number of openers
0x
Number of closers
1x
Number of poles
1x
Number of switching cycles
20000000x
Max. Switching capacity
1.25 kW

Smart home features

Smart home
Not compatible

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂ emissions
0.1 kg
Climate contribution
CHF 0.11

Scope of delivery

Scope of delivery
1 pc.

Product dimensions

Length
52 mm
Width
10 mm
Height
82.50 mm
Weight
16.80 g
