Product details

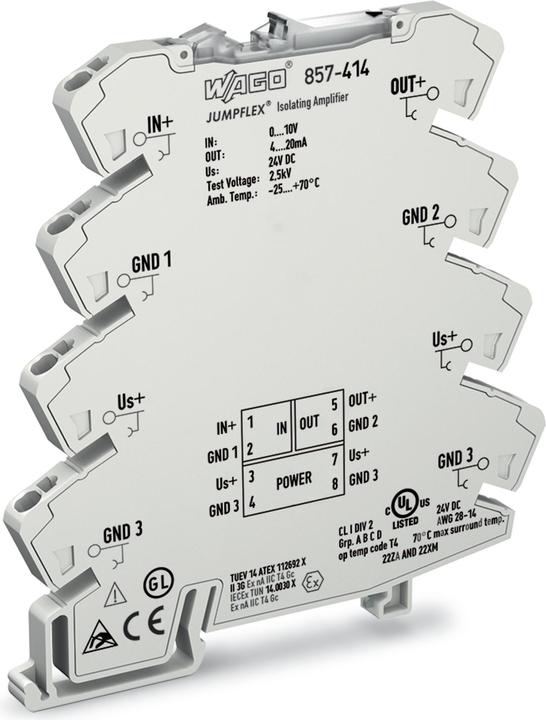

WAGO GmbH & Co. KG Isolation Amplifier 857-414

Manufacturer: WAGO GmbH & Co. KG
Designation: Isolation Amplifier
Configuration U/I: Dz/Lz
Type: 857-414
Power Supply Type: Other
Rated Operating Frequency: 100 Hz
Rated Supply Voltage at DC: 16.8..31.2 V
Number of Input Ranges 0 V ... 10 V: 1
Number of Output Ranges 4 mA ... 20 mA: 1
Number of Channels: 1
Fault Signal Output: No
Intrinsically Safe according to EN 60947-5-6 NAMUR: No
Galvanic Isolation Between Inputs: Yes
Galvanic Isolation Between Input and Output: Yes
Galvanic Isolation Between Outputs: No
Galvanic Isolation Between Power Supply and All Other Circuits: Yes
Height: 96 mm
Width: 6 mm
Depth: 94 mm
Load: 600..2000 Ohm
Operating Temperature: -25..70 °C
Temperature Drift: 0.01 %/K
Device Housing Type: Other
Electrical Connection Type: Spring Clamp Connection
Mounting Type: Snap-on Mounting Rail
Protection Class (IP): IP20

WAGO GmbH & Co. KG Isolation Amplifier 857-414: Additional Details
Isolation amplifier with voltage input signal, current output signal, DC 24 V power supply, 6 mm width, 2.50 mm², EAN: 4045454609863.
