Wago Installation floor terminal

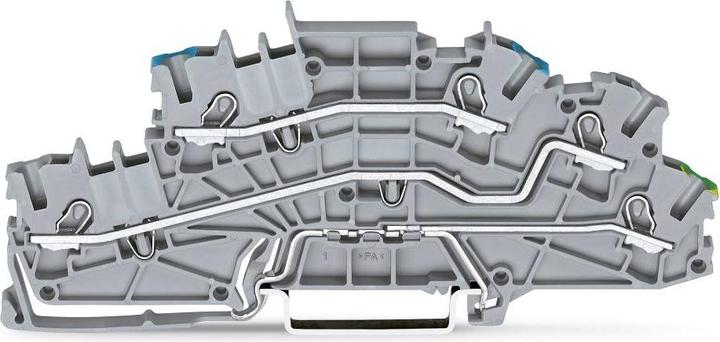

WAGO GmbH & Co. KG Installation Level Terminal 2003-6646

Manufacturer: WAGO GmbH & Co. KG
Description: Installation Level Terminal 4mm² gray N/L/PE
Type: 2003-6646

Connectable conductor cross-section fine-stranded without ferrule: 0.25..4 mm²
Connectable conductor cross-section fine-stranded with ferrule: 0.75..2.5 mm²
Connectable conductor cross-section solid: 0.75..4 mm²
Connectable conductor cross-section multi-stranded: 0.25..2.5 mm²

Rated current In: 20 A
Rated voltage: 250 V
Type of electrical connection 1: Spring clamp connection
Type of electrical connection 2: Spring clamp connection

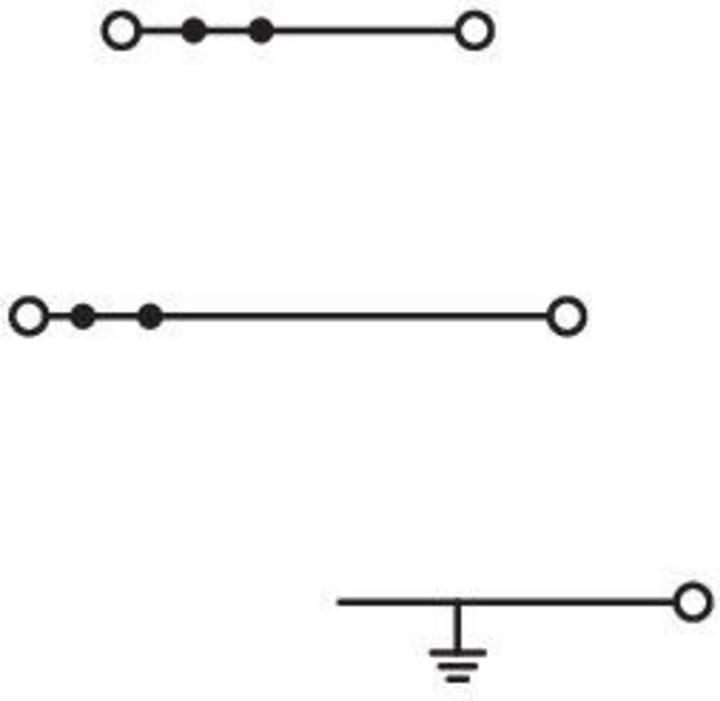

Number of potentials: 3
Mounting type: TH35 rail
Material of insulating body: Thermoplastic
Operating temperature: 105 °C
Flammability class of insulating material according to UL 94: V0

Width: 5.2 mm
Height: 110 mm
Depth: 45.2 mm
End plate required: yes
Base color: gray
With PE function: yes
With N-separation slide: no
N-function possible: yes

WAGO GmbH & Co. KG Installation Level Terminal 2003-6646: additional details
Installation level terminal with actuation opening 2.5 mm² N/L/PE Push-in CAGE CLAMP® 2.50 mm² gray.
