Wago Feed-through terminal

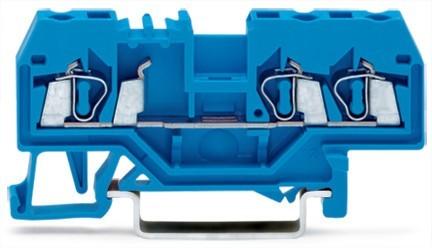

WAGO GmbH & Co. KG Through Terminal 280-684

Manufacturer: WAGO GmbH & Co. KG
Designation: Through terminal blue 0.08-2.5 mm²
Type: 280-684

Connectable conductor cross-section fine-stranded without ferrule: 0.08..2.5 mm²
Connectable conductor cross-section fine-stranded with ferrule: 0.08..2.5 mm²
Connectable conductor cross-section solid: 0.08..2.5 mm²
Connectable conductor cross-section multi-stranded: 0.08..2.5 mm²

Rated current In: 24 A
Rated voltage: 800 V
Electrical connection type 1: Spring clamp connection
Electrical connection type 2: Spring clamp connection

Number of levels: 1
Number of connection points per level: 3
Mounting type: DIN rail TH35
Material of the insulating body: Thermoplastic
Operating temperature: 105 °C
Flammability class of the insulating material according to UL 94: V0

Width: 5 mm
Height: 64 mm
Depth: 28 mm
Explosion-proof version "Ex e": yes
End plate required: yes
Color: blue
Internally bridged levels: no

WAGO GmbH & Co. KG Through Terminal 280-684: additional details
3-conductor through terminal 2.5 mm² suitable for Ex i applications, central labeling for mounting rail 35 x 15 and 35 x 7.5, CAGE CLAMP® 2.50 mm² blue, EAN: 4044918391412.
