Wago Feed-in terminal

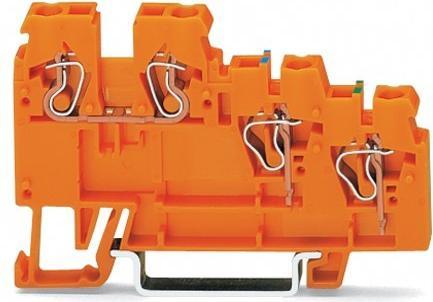

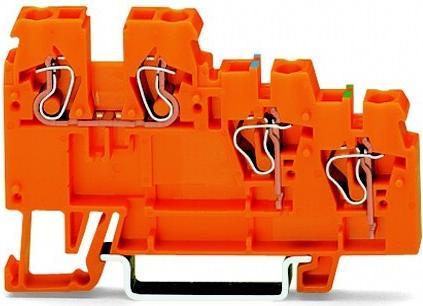

WAGO GmbH & Co. KG power feed terminal block 270-577

Manufacturer: WAGO GmbH & Co. KG
Designation: Power feed terminal block
Type: 270-577
Connectable conductor cross-section fine-wire without ferrule: 0.08...2.5 mm²
Connectable conductor cross-section finely stranded with ferrule: 0.25...1.5 mm²
Connectable conductor cross-section solid: 0.08...2.5 mm²
Connectable conductor cross-section stranded: 0.08...2.5 mm²
Rated current In: 18 A
Rated voltage: 250 V
Number of levels: 3
Number of terminal points per level: 4
Levels internally bridged: No
Electrical connection version 1: Spring-cage connection
Electrical connection version 2: Spring-cage connection
Mounting type: Top-hat rail TH35
Cross-connectable: Yes
Insulator material: Thermoplastic
Operating temperature: 105 °C
Flammability class of the insulating material according to UL 94: V0
Width: 5 mm
Height: 68 mm
Depth: 39 mm
Explosion-tested version "Ex e": No
End plate required: Yes
Colour: Orange
LED switching for: No
With PE connection: No
With shield connection: No
With power feed function: Yes
Disconnect function: No

WAGO GmbH & Co. KG power feed terminal block 270-577: more details

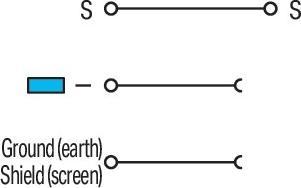

3-wire actuator power feed terminal block with colour-printed conductor entries 2.5 mm² CAGE CLAMP® 2.50 mm² orange.
