Wago Distributor

WAGO GmbH & Co. KG Distributor 770-608

Manufacturer: WAGO GmbH & Co. KG
Designation: Distributor
Rated voltage: 250 V
Rated current: 25 A
Rated current to luminaire: 25 A
Number of poles: 3
Protection class (IP): IP20
Number of inputs: 3
Number of outputs: 15
Pole identification: L, N, PE
Mechanical coding: Yes
Color of coding/contact insert: Black
Color of separate adapter piece: Without adapter piece
Type of locking: Integrated in connector
Halogen-free: Yes
Max. continuous temperature resistance contact part: 85 °C
Max. continuous temperature resistance strain relief: 105 °C
Material of housing: Polyamide (PA)
Contact material: Other
Surface treatment contacts: Other
Degree of contamination: 3
Contact resistance: 0.5 mOhm
Rated surge voltage: 4 kV

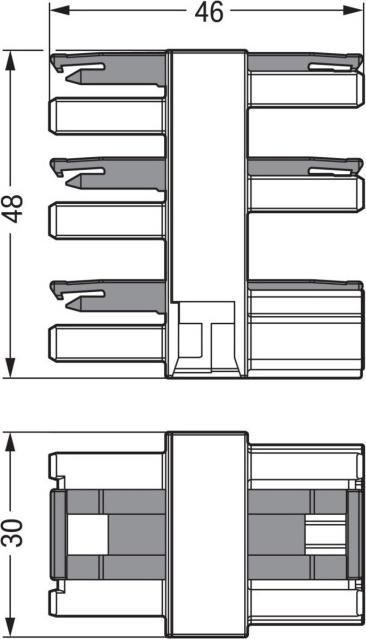

Length: 46 mm
Height: 48 mm
Width: 30 mm
Type of distributor: Other
Type of integrated circuit: Without
Mounting option: No

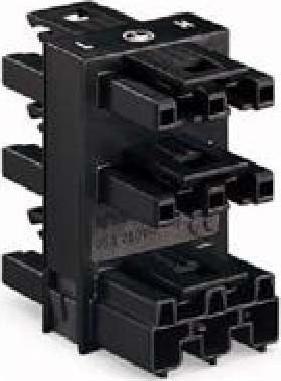

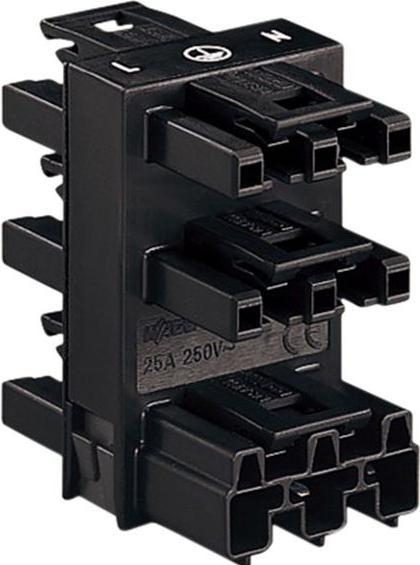

5-way distributor, 3-pole, cod. A, 1 input, 5 outputs, double-sided outlets, black, EAN: 4045454251376.
