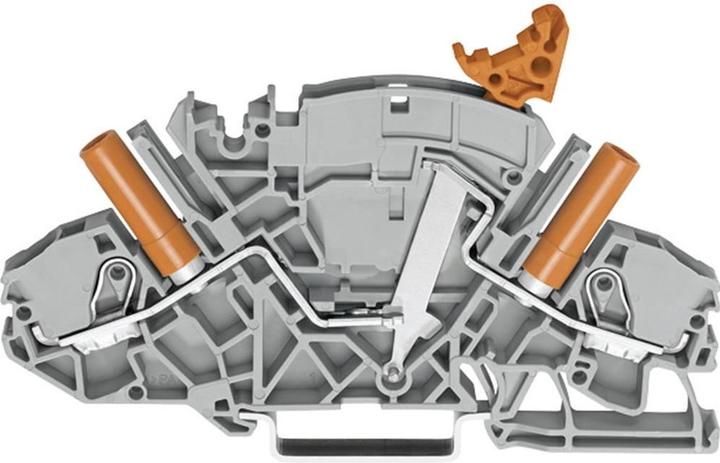

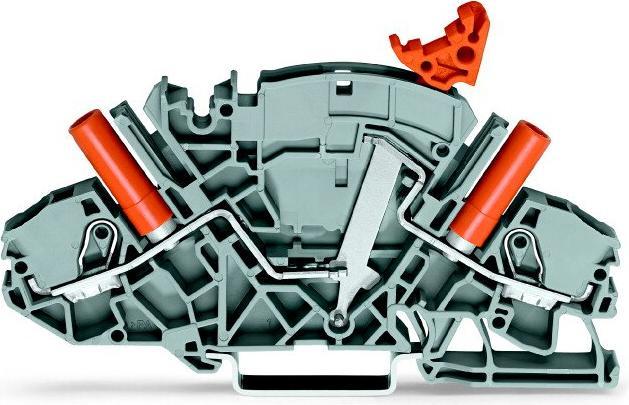

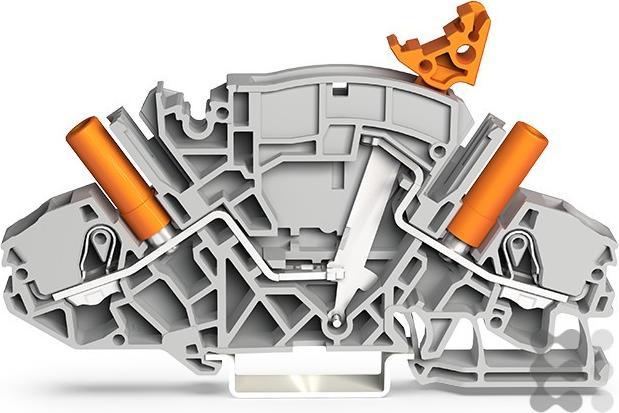

Wago Disconnect/measure terminal

WAGO GmbH & Co. KG Disconnect/Measuring Terminal 2007-8821

Manufacturer: WAGO GmbH & Co. KG
Designation: Disconnect/Measuring Terminal gray
Type: 2007-8821

Connectable conductor cross-section fine-stranded without ferrule: 0.5..10 mm²
Connectable conductor cross-section fine-stranded with ferrule: 1.5..6 mm²
Connectable conductor cross-section solid: 1..10 mm²
Connectable conductor cross-section multi-stranded: 0.5..6 mm²

Rated current In: 30 A
Rated voltage: 500 V
Electrical connection type 1: Spring clamp connection
Electrical connection type 2: Spring clamp connection

Number of levels: 1
Number of connection points per level: 2
Internally bridged levels: no
Mounting type: TH35 DIN rail

Material of the insulating body: Thermoplastic
Flammability class of the insulating material according to UL 94: V0
Operating temperature: 105 °C
Width: 8 mm
Depth: 99.6 mm
End plate required: yes
Color: gray
Longitudinal separation type: none
Transverse separation type: none
With integrated test socket: yes

2-wire disconnect and measuring terminal, e.g., for current transformer circuits with space for circuit bridges for test plugs Ø 4 mm for mounting rail 35 x 15 and 35 x 7.5.
6 mm² Push-in CAGE CLAMP®, gray.
