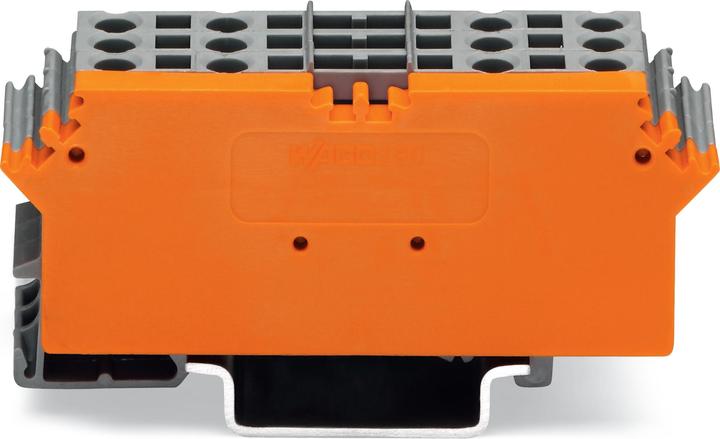

Wago Basic terminal block

WAGO GmbH & Co. KG basic terminal block 280-763

Manufacturer: WAGO GmbH & Co. KG
Designation: Basic terminal block 4-L. m
Type: 280-763
Connectable conductor cross-section finely stranded without ferrule: 0.08 to 2.5 mm²
Connectable conductor cross-section solid: 0.08 to 2.5 mm²
Connectable conductor cross-section stranded: 0.08 to 2.5 mm²
Rated current: 10 A
Rated voltage: 400 V
Electrical connection version 1: Spring-cage connection
Electrical connection version 2: Spring-cage connection
Number of levels: 1
Number of terminals per level: 12
Mounting type: Top-hat rail TH35
Insulator material: Thermoplastic
Operating temperature: 105 °C
Flammability class of the insulating material according to UL 94: V0
Width: 20 mm
Height: 73 mm
Depth: 28 mm
Explosion-tested version "Ex e": No
End plate required: No
Colour: Grey
Floors internally bridged: No

WAGO GmbH & Co. KG basic terminal block 280-763: more details
Basic terminal block 6-pole with 4-wire terminals with labelling carrier and orange partition for mounting rail 35 x 15 and 35 x 7.5 2.5 mm² CAGE CLAMP® 2.50 mm² grey.
