Wago 4-wire terminal

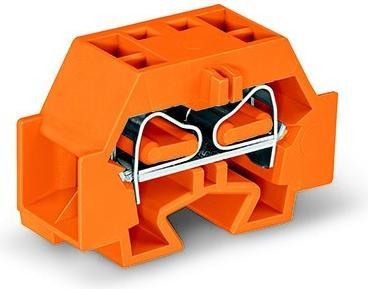

WAGO GmbH & Co. KG 4-wire terminal block 262-336

Manufacturer: WAGO GmbH & Co. KG
Designation: 4-wire terminal block with flange, 2x0.08
Type: 262-336
Explosion-tested version "Ex e": No
Connectable conductor cross-section fine-wire without ferrule: 0.08 to 4 mm²
Connectable conductor cross-section solid: 0.08 to 4 mm²
Connectable conductor cross-section stranded: 0.08 to 4 mm²
Rated current In: 24 A
Rated voltage: 630 V
Electrical connection version 1: Spring-cage connection
Electrical connection version 2: Spring-cage connection
Number of poles: 1
Number of terminals per pole: 4
Mounting type: Other
Insulator material: Thermoplastic
Operating temperature: 105 °C
Flammability class of the insulating material according to UL 94: V0
Halogen-free: Yes
Width: 12 mm
Height: 33.5 mm
Depth: 23.1 mm
End plate required: Yes
Colour: Orange
Transparent: No

Further details: 4-wire terminal block without push-button with fixing flange, 1-pole for screw fixing and similar. Mounting types: Mounting hole Ø 3.2 mm, 4 mm² CAGE CLAMP® 4.00 mm².
