Wago 4-L.clamp

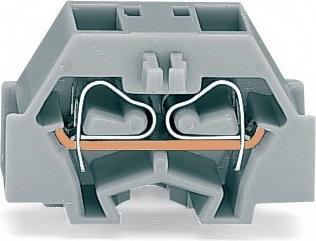

WAGO GmbH & Co. KG 4-L terminal 260-346

Manufacturer: WAGO GmbH & Co. KG
Designation: 4-L
Type: 260-346
Explosion-proof version "Ex e": No
Connectable conductor cross-section flexible without ferrule: 0.08...1.5 mm²
Connectable conductor cross-section solid: 0.08...1.5 mm²
Connectable conductor cross-section stranded: 0.08...1.5 mm²
Rated current In: 18 A
Rated voltage: 400 V
Electrical connection type 1: Spring-loaded connection
Electrical connection type 2: Spring-loaded connection
Number of poles: 1
Number of clamping points per pole: 4
Mounting type: Other
Insulating body material: Thermoplastic
Operating temperature: -30..85 °C
Flammability class of insulating material according to UL 94: V0
Halogen-free: Yes
Width: 8 mm
Height: 25.1 mm
Depth: 17.1 mm
End plate required: Yes
Colour: Orange
Transparent: No

WAGO GmbH & Co. KG 4-L terminal block 260-346: further details
4-wire terminal block without push-button with snap-in foot, 1-pole for sheet thickness 0.6 - 1.2 mm, fixing hole Ø 3.5 mm, 1.5 mm² CAGE CLAMP®, 1.50 mm² orange.
