Wago 281-603/281-410

WAGO GmbH & Co. KG 2-wire terminal block 281-603/281-410

Manufacturer: WAGO GmbH & Co. KG
Designation: 2-wire terminal block with diode
Type: 281-603/281-410
Explosion-tested version "Ex e": No
Connectable conductor cross-section finely stranded without ferrule: 0.08 to 4 mm²
Connectable conductor cross-section solid: 0.08 to 4 mm²
Connectable conductor cross-section stranded: 0.08 to 4 mm²
Rated current In: 0.5 A
Rated voltage: 250 V
Electrical connection version 1: Spring-cage connection
Electrical connection version 2: Spring-cage connection
Number of levels: 1
Number of terminals per level: 2
Levels internally bridged: No
Mounting type: DIN rail TH35
Insulator material: Thermoplastic
Operating temperature: 105 °C
Flammability class of the insulating material according to UL 94: V0
Width: 6 mm
Height: 53 mm
Depth: 29 mm
End plate required: Yes
Colour: Grey
Component type: Diode

WAGO GmbH & Co. KG 2-wire terminal block 281-603/281-410: more details

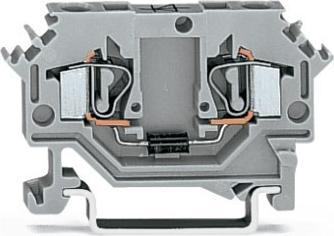

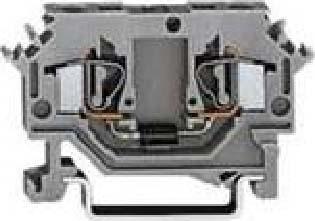

2-wire component terminal block with diode 1N4007 anode left for mounting rail 35 x 15 and 35 x 7.5, 4 mm² CAGE CLAMP® 4.00 mm² grey, EAN: 4045454196936.
