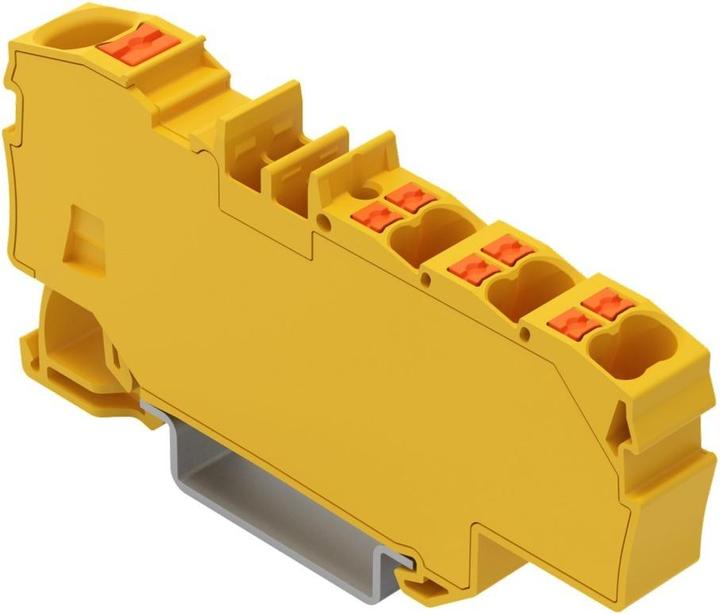

Wago 2206-8036

WAGO GmbH & Co. KG Distribution terminal 2206-8036 Manufacturer :WAGO GmbH & Co. KG Designation :Distribution terminal 1x6mm²/6x1,5mm²,ge Type :2206-8036 Connectable conductor cross-section fine stranded without ferrule :0,5..10 mm² Connectable conductor cross-section finely stranded with ferrule :1.5..6 mm² Connectable conductor cross-section solid :1..10 mm² Connectable conductor cross-section stranded :0.5...6 mm² Rated current In :41 A Rated voltage :800 V Electrical connection version 1 :Spring-cage connection Electrical connection version 2 :Spring-cage connection Number of levels :1 Number of terminals per level :7 Mounting type :Top-hat rail TH35 Insulating body material :Thermoplastic Operating temperature :105 °C Flammability class of the insulating material according to UL 94 :V0 Width :9 mm Height :73.8 mm Depth :32.9 mm Explosion-tested version "Ex e" :no End plate required :no Colour :grey Floors internally bridged :no WAGO GmbH & Co. KG Distribution terminal block 2206-8036: more details Distribution terminal block with pusher 1 x 6 mm² / 6 x 1.5 mm² with integrated end plate suitable for Ex e II applications lateral and central labelling for mounting rail 35 x 15 and 35 x 7.5 Push-in CAGE CLAMP® 6.00 mm² yellow , EAN: 4066966379228.
