Wago 2000-5310/102-000

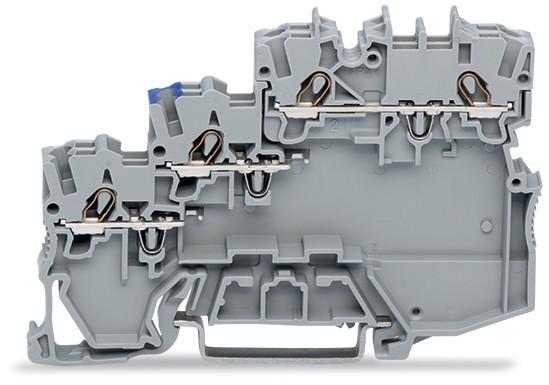

WAGO GmbH & Co. KG 3-conductor actuator terminal block 2000-5310/102-000. This 3-conductor actuator terminal block is designed for PNP (plus) applications.

Key specifications include:

• Connectable conductor cross-section fine-stranded without ferrule: 0.14 to 1.5 mm²
• Connectable fine-stranded conductor cross-section with ferrule: 0.5 to 0.75 mm²
• Connectable solid conductor cross-section: 0.5 to 1.5 mm²
• Connectable stranded conductor cross-section: 0.14 to 1 mm²
• Rated current: 13.5 A
• Rated voltage: 250 V
• Number of floors: 3
• Number of terminals per floor: 2
• Floors internally bridged: No
• Electrical connection type: Spring-loaded connection
• Mounting type: Top-hat rail TH35
• Cross-connectable: Yes
• Material of the insulating body: Thermoplastic
• Operating temperature: 105 °C
• Flammability class of the insulating material according to UL 94: V0
• Dimensions: Width 7 mm, Height 81.1 mm, Depth 52.4 mm
• Explosion-proof version "Ex e": No
• End plate required: Yes
• Colour: Grey
• LED switching for PNP: Yes
• With PE connection: Yes
• With shield connection: No
• With supply function: No
• Disconnect function: No

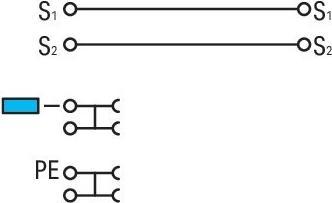

This terminal block features a 3-wire configuration for PNP (plus) switching actuators with PE via comb jumper and includes coloured printed conductor entries for 1 mm² Push-in CAGE CLAMP® 1.00 mm² in grey. EAN: 4055143393454.
