Wago 2-L.clamp

Ratings
Delivered between Sat, 14.6. and Fri, 27.6.
More than 10 items in stock at supplier

Product details

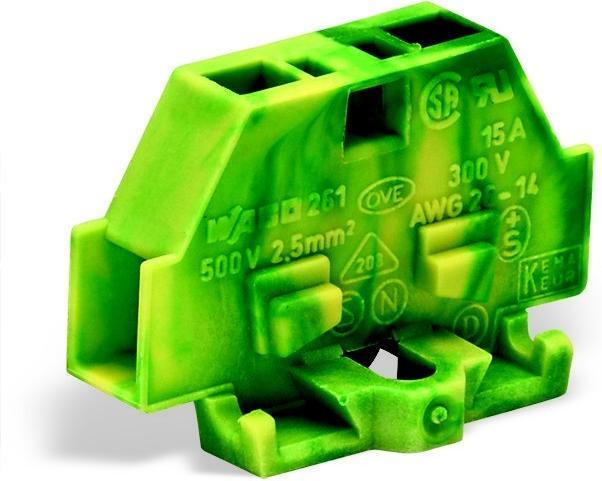

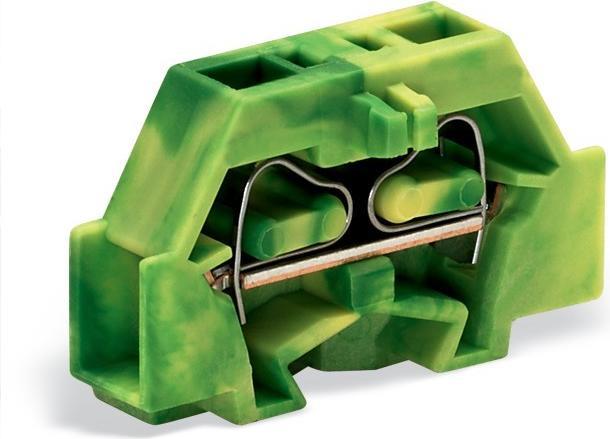

WAGO GmbH & Co. KG 2-L.terminal block 261-307 Manufacturer :WAGO GmbH & Co. KG Designation :2-L.terminal block 0.08-2.5mmq gn/yellow Type :261-307 Explosion-proof version "Ex e" :no Connectable conductor cross-section flexible without ferrules :0.08...2.5 mm² Connectable conductor cross-section solid :0.08...2.5 mm² Connectable conductor cross-section stranded :0.08...2.5 mm² Rated current In :24 A Rated voltage :500 V Electrical connection type 1 :Spring-loaded connection Electrical connection type 2 :Spring-loaded connection Number of poles :1 Number of clamping points per pole :2 Mounting type :other Insulating body material :Thermoplastic Operating temperature :-30...85 °C Flammability class of the insulating material according to UL 94 :V0 Halogen-free :yes Width :6 mm Height :28.1 mm Depth :18.1 mm End plate required :yes Colour :green/yellow Transparent :no WAGO GmbH & Co. KG 2-wire terminal block 261-307: further details 2-wire terminal block without push-button with mounting flange 1-pole for screw and similar types of fastening Mounting types Mounting hole Ø 3.2 mm 2.5 mm² CAGE CLAMP® 2.50 mm² green-yellow , EAN: 4044918611329.

Key specifications

Item number
36765695

General information

Manufacturer
Wago
Category
Cables + Plugs
Manufacturer no.
261-307
Release date
29.6.2023

Colour

Colour
Green

Material

Material group
Plastic
Material
Thermoplastic resin

Cable + Connector Features

Max. temperature
85 °C
Min. temperature
-30 °C
Number of cores
2 x

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
1.81 cm
Width
0.60 cm
Height
2.81 cm
