Wago 2-conductor through terminal 2202-1201 w.push-button 2.5qmm grey 1

Minimum order 10
Ratings
Delivered between Fri, 23.5. and Mon, 26.5.
More than 10 items in stock at third-party supplier
Supplied by

Product details

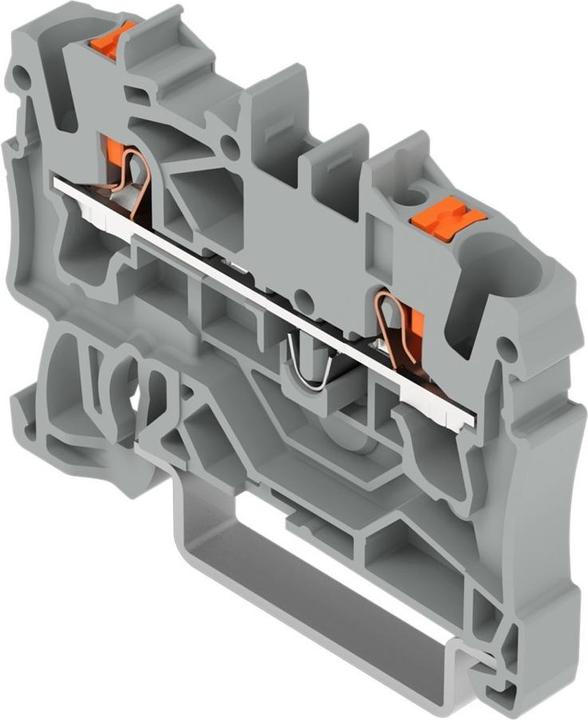

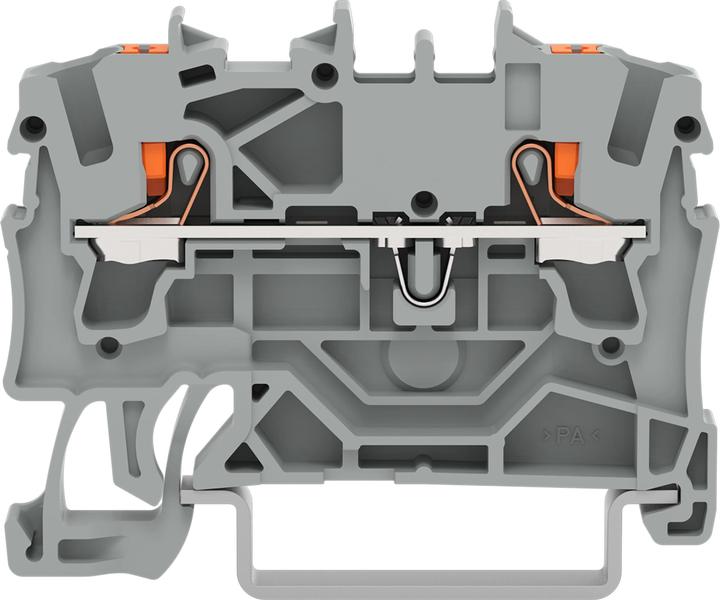

WAGO GmbH & Co. KG 2-Wire Terminal Block 2202-1201

Manufacturer: WAGO GmbH & Co. KG
Designation: 2-Wire Terminal Block 2.5 mm², gray
Type: 2202-1201

Connectable conductor cross-section for fine-stranded without ferrule: 0.25 - 4 mm²
Connectable conductor cross-section for fine-stranded with ferrule: 0.75 - 2.5 mm²
Connectable conductor cross-section for solid: 0.75 - 4 mm²
Connectable conductor cross-section for multi-stranded: 0.25 - 2.5 mm²

Rated current In: 24 A
Rated voltage: 800 V
Electrical connection type 1: Spring clamp connection
Electrical connection type 2: Spring clamp connection

Number of levels: 1
Number of connection points per level: 2
Mounting type: DIN rail TH35
Material of insulating body: Thermoplastic
Operating temperature: 105 °C
Flammability class of insulating material according to UL 94: V0

Width: 5.2 mm
Height: 48.5 mm
Depth: 32.9 mm
Explosion-proof version "Ex e": yes
End plate required: yes
Color: gray
Internally bridged levels: no

WAGO GmbH & Co. KG 2-Wire Terminal Block 2202-1201: additional details
2-Wire terminal block with push button 2.5 mm² with test opening suitable for Ex e II applications, side and center labeling for mounting rail 35 x 15 and 35 x 7.5. Push-in CAGE CLAMP® 2.50 mm² gray, EAN: 4055143848497.

Key specifications

Cable + connector type
Various
Cable length
0.04 m
Item number
22601933

General information

Manufacturer
Wago
Category
Cables + Plugs
Manufacturer no.
2202-1201
Release date
16.5.2022
Order quantity steps
10
Order quantity steps
10
Order quantity steps
10
Order quantity steps
10

Colour

Colour
Grey

Material

Material group
Plastic
Material
Thermoplastic resin

Cable + Connector Features

Cable + connector type
Various
Compatible hardware
Various
Max. temperature
105 °C
mounting type
DIN top-hat rail
Cable length
0.04 m
Manufacturer Type
2202-1201
Number of cores
2 x

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
100 Piece
Scope of delivery
2-conductor feed-through terminal 2.5qmm, grey

Product dimensions

Length
3.29 cm
Width
0.52 cm
Height
4.85 cm
