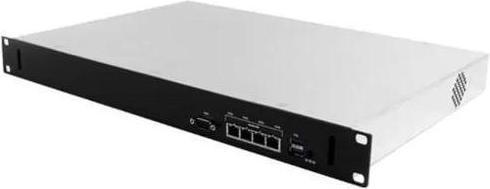

Varia OPNSense complete system with AMD APU board (19" DualRack)

Ratings
Delivered between Wed, 25.6. and Fri, 4.7.
More than 10 items in stock at supplier

Product details

The OPNsense software is based on FreeBSD and is designed for use as a firewall and router. It includes nearly all the features of expensive commercial firewalls, and in many cases, even more. Here are some supported features:

  • Firewall
  • State table
  • NAT
  • Redundancy
  • Load balancing for outgoing and incoming connections
  • VPN - IPsec, OpenVPN, PPTP
  • PPPoE server
  • RRD graph reporting
  • Real-time information - with AJAX
  • Dynamic DNS
  • Unprotected portal
  • DHCP server and relay
  • Live CD version available

The OPNsense software runs on an energy-efficient APU4D4 system, resulting in an average power consumption of a maximum of 10 watts. The system is fanless, passively cooled, and extremely compact.

Included in the package:

  • APU4D4 system board
  • Pre-installed OPNsense software
  • VARIA 19" rackmount case
  • 12 V, 3 A power supply
  • 32 GB mSATA SSD
  • CPU: AMD Embedded G Series GX-412TC, 1 GHz Quad-Jaguar-Core with 64-bit and AES-NI support, 32K data + 32K instruction cache per core, shared 2 MB L2 cache
  • DRAM: 4 GB DDR3-1333 DRAM
  • Storage: Boot from SD card (internal sdhci controller), external via USB or m-SATA SSD, 1x SATA + power connection, mSATA is shared with miniPCI Express
  • 12 V DC, approx. 6 to 12 W depending on CPU load, connector = 2.5 mm, center positive
  • Connectivity: 4x Gigabit Ethernet channels (Intel i211AT)
  • I/O: serial DB9 interface, 2x USB 3.0 external + 2x USB 2.0 internal, 3x LEDs on the front, button
  • Expansion: 3x miniPCI express (J13 USB or mSATA, with SIM; J14 only USB, with SIM; J15: miniPCI express, but no SIM, intended for Wi-Fi), GPIO header, optional I2C bus, COM2 (3.3 V RXD/TXD)
  • Board size: 6 x 6" (152.4 x 152.4 mm) – like APU1D, ALIX2D13, and WRAP1E
  • Firmware: coreboot
  • Cooling: Conductive cooling from the CPU to the case with a 3 mm aluminum heat spreader (included).

Key specifications

Development board type
Kit
Memory
4000 MB
Clock speed
1000 MHz
Item number
58889429

General information

Manufacturer
Varia
Category
Development boards + Kits
Manufacturer no.
OPNSENSE_RACK_APU4
Release date
26.5.2025

Development board properties

Development board type
Kit
Clock speed
1000 MHz
Memory
4000 MB

Power supply

Power supply
Electrical connection
Operating voltage
12 V

Wireless transmission

Wireless transmission
Wi-Fi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
152.40 mm
Width
914.40 mm
Height
914.40 mm
