Turris

Turris MOX/Omnia WiFi 5 GHz Expansion Card (mPCIe)

WS3294 is a WiFi Mini PCIe module based on the Mediatek MT7615, a WiFi Mini PCIe single-chip that supports a PHY rate of 1733 Mbps. It fully complies with the IEEE 802.11ac and 802.11 a/b/g/n standards, providing feature-rich wireless connectivity at a high level, as well as reliable, cost-effective throughput over long distances.

The optimized RF architecture and baseband algorithms ensure excellent performance and low power consumption. The intelligent MAC design utilizes a highly efficient offload engine and hardware data processing accelerators, completely relieving the host processor of Wi-Fi tasks. The MT7615 supports standard-based features in security, quality of service, and international regulations, delivering the best performance to the end user at all times and under all circumstances.

The MT7615 supports simultaneous dual-band operation in the 5 GHz and 2.4 GHz bands (DBDC, Dual-Band-Dual-Concurrent).

With the introduction of 802.11ac, Multiuser-MIMO (MU-MIMO) was defined. The MT7615 supports MU-MIMO with various configurations. An access point is capable of utilizing its antenna groups to transmit multiple frames to different clients simultaneously over the same frequency spectrum.

Standards: IEEE 802.11ac/b/g/n (4Tx4R)
Data rate: IEEE 802.11ac 1733 Mbps @ TX/RX, IEEE 802.11a/n 600 Mbps @ TX/RX, IEEE 802.11a/g 108 Mbps, IEEE 802.11b 22 Mbps, IEEE 802.11ac up to 1733 Mbps
Output power: 11b: 20 dBm +/- 1.5 dBm @ 11 Mbps; 11g: 18 dBm +/- 1.5 dBm @ 54 Mbps; 11g/n: 18 dBm +/- 1.5 dBm @ MCS7, HT20; 17 dBm @ MCS7, HT40; 11a: 16 dBm +/- 1.5 dBm @ 54 Mbps; 11a/n: 15 dBm +/- 1.5 dBm @ MCS7, HT20; 13 dBm @ MCS7, HT40; 11ac HT20: 12 +/- 1.5 dBm @ MCS8; 11ac HT40: 12 +/- 1.5 dBm @ MCS9; 11ac HT80: 12 +/- 1.5 dBm @ MCS9
Receiver sensitivity: 11b: -89 dBm...

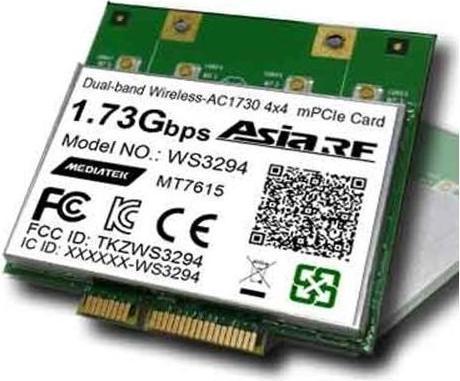

Actual product image Turris RTROM01-WS3294 - MOX/Omnia WiFi 5 GHz Card Add-on (mPCIe)

Key specifications

5 GHz transfer rate

2.4 GHz transfer rate

Network adapter type

Data transmission, digital transmission, or digital communications is the physical transfer of data (a digital bit stream) over a point-to-point or point-to-multipoint communication channel. Examples of such channels are copper wires, optical fibres, wireless communication channels, and storage media. The data are represented as an electromagnetic signal, such as an electrical voltage, radiowave, microwave, or infrared signal.
