Product details

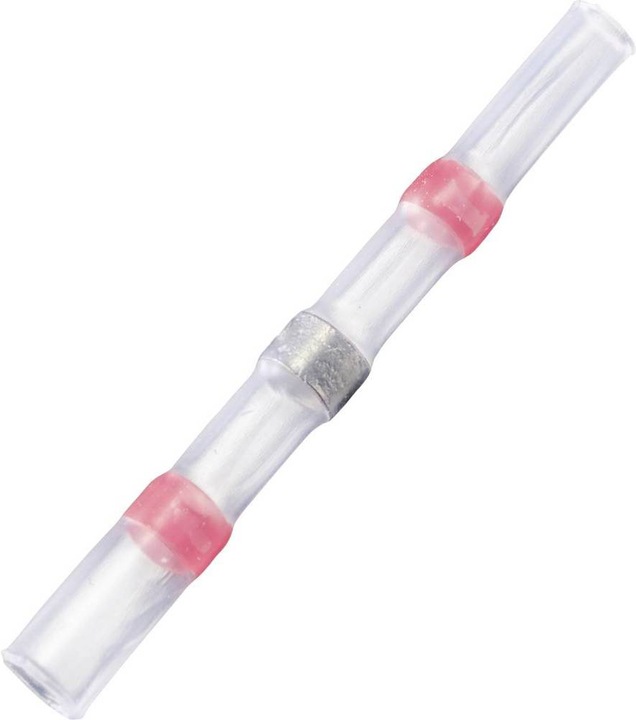

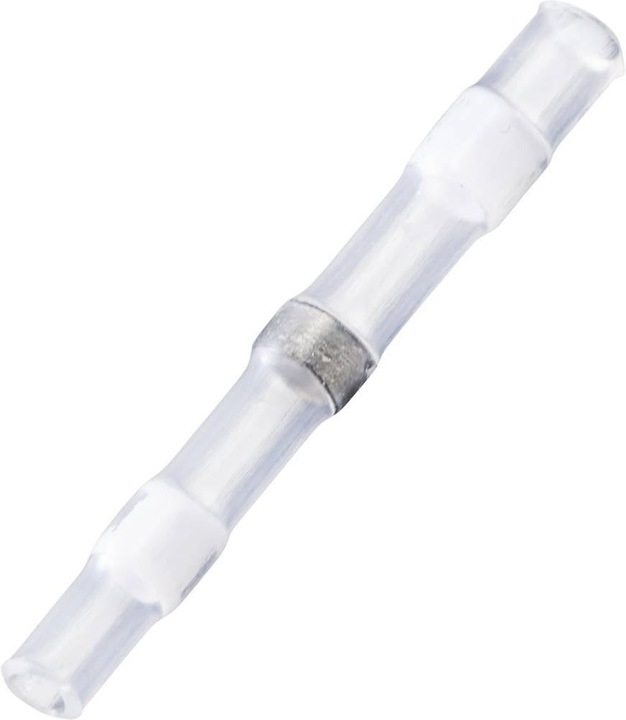

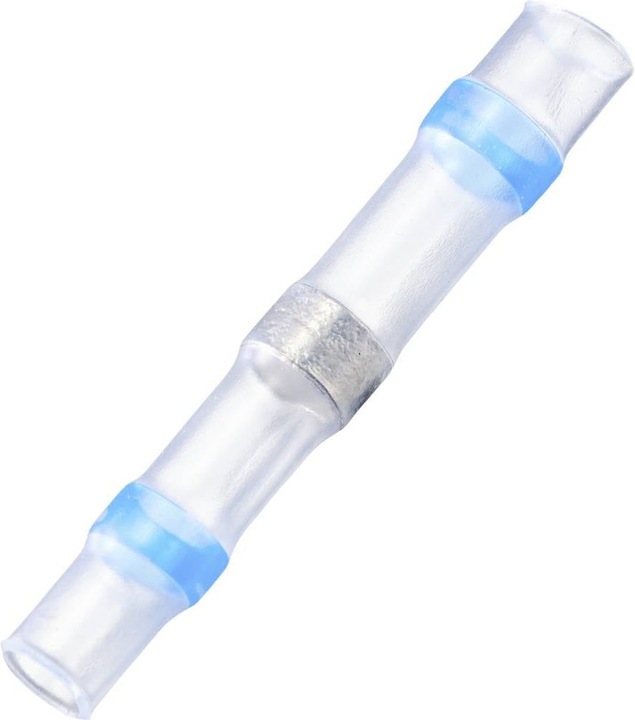

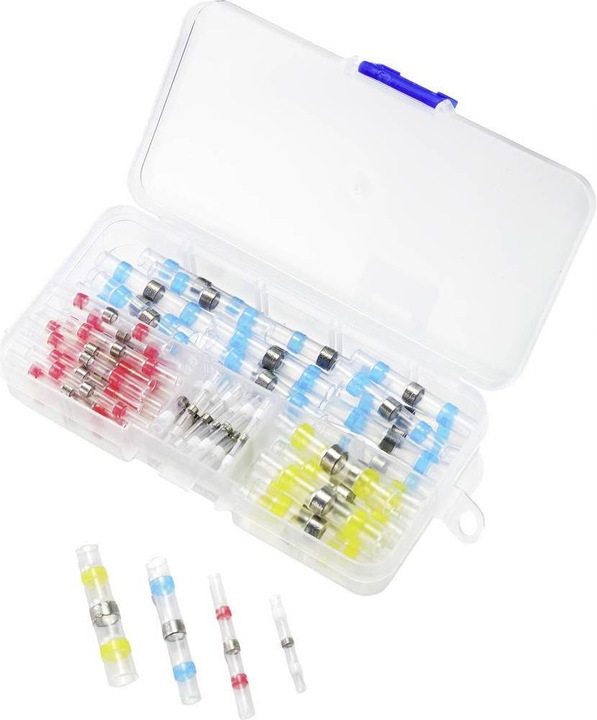

Butt connector with heat shrink tubing. 90 pieces. Heat shrink ratio 2:1. Technical data: AWG max: 26, AWG min: 10, Manufacturer's part number: TC-9508164, Colour: white, red, blue, yellow, Content: 1 piece, Insulation material: heat shrink tubing, Insulation type: fully insulated, Contact material: tin, Product type: butt connector, Cross section (min): 6 mm², Cross section range: 6 mm² (min), Shrink temperature: full recovery temperature at 80°C, initial solder melt temperature: 138°C, complete solder melt temperature at 160°C, Connector features: assortment box including butt connector, Temperature range: -55°C to 125°C, Type: TC-9508164. Scope of delivery: 30 x butt connector with heat shrink tubing 0.08 - 0.22 mm² bundle diameter 1.7 mm white, 30 x butt connector with heat shrink tubing 0.34 - 0.75 mm² bundle diameter 2.7 mm red, 20 x butt connector with shrink tubing 1 - 2.5 mm² bundle diameter 4.5 mm blue, 10 x butt connector with shrink tubing 4 - 6 mm² bundle diameter 6 mm yellow.
