TinyCircuits TinyShield Bluetooth Low Energy (BLE)
CHF 54.90

TinyCircuits TinyShield Bluetooth Low Energy (BLE)

TinyCircuitsElectronics modules

Wirelessly connect to your TinyDuino projects with very low power

Art-Nr 5998652
 approx. 7–9 days Currently 1 piece(s) in stock at the supplier

Availability

  • approx. 7–9 days
    Currently 1 piece(s) in stock at the supplier

If ordered immediately.
Information subject to change.

View details

A digitec product
Share

Description

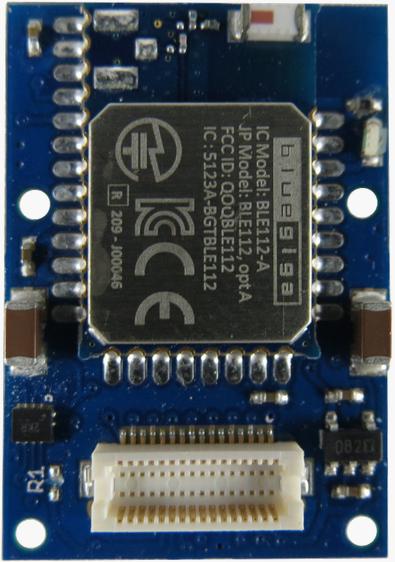

This TinyShield is based around the Bluegiga BLE112 module and lets
you connect your projects using Bluetooth 4 Low Energy (also known as
Bluetooth Smart), which is supported on newer phones (like the iPhone
4s, and 5). This technology is great for low power sensors and
accessories.

Includes power supply and level shifters on the board, so you can run
your TinyDuino from 3.3V - 5V.

Specifications:

* Bluetooth v. 4.0, single mode compliant

* Supports master and slave modes
* Supports up to eight connections

* Integrated Bluetooth Smart stack

* GAP, GATT, L2CAP, SMP
* Bluetooth Smart profiles

* Radio performance

* TX power: +3 dBm to -23 dBm
* Receiver sensitivity: -93 dBm

* Ultra low current consumption

* Transmit: 27mA (0 dBm)
* Sleep mode 3: 0.5 uA

* Ultra compact size and weight

* Rectangular Version: 20mm x 29mm (.787 inches x 1.142 inches)
* Max Height (from lower bottom TinyShield Connector to upper top
TinyShield Connector): 5.11mm (0.201 inches)
* Weight: TBD grams (TBD ounces)

* UART Mode used

* Arduino pins 0 - 1 used by this shield (the standard hardware UART
lines)

* Built in level shifters and linear power supply to allow your
TinyDuino to run up to 5.0V operation.

To see what other TinyShields this board can be used with at the same
time with, see the TinyShield Compatibility Matrix [1] Tutorial @
Tiny-Circuits: Learn how to use the Bluetooth LE TinyShield [2]

Links:
------
[1] https://tiny-circuits.com/tinyshield-compatibility/
[2]
http://tiny-circuits.com/learn/using-the-bluetooth-low-energy-tinyshield/ … more

Specifications

Click 'show more' to display specifications.

General information

Manufacturer TinyCircuits
Product type Electronics modules
Item number5998652
Manufacturer no.ASD2112-R
