TinyCircuits TinyShield Accelerometer

Art-Nr 5998624
 Currently unavailable. Delivery date unknown.

Availability

Mail delivery

  • Currently unavailable. Delivery date unknown.

Collection

  • Basel: Currently unavailable. Delivery date unknown.
  • Bern: Currently unavailable. Delivery date unknown.
  • Dietikon: Currently unavailable. Delivery date unknown.
  • Geneva: Delivery date unknown
  • Kriens: Currently unavailable. Delivery date unknown.
  • Lausanne: Currently unavailable. Delivery date unknown.
  • St Gallen: Currently unavailable. Delivery date unknown.
  • Winterthur: Currently unavailable. Delivery date unknown.
  • Wohlen: Delivery date unknown
  • Zurich: Currently unavailable. Delivery date unknown.

Information subject to change.

View details

A digitec product

Description

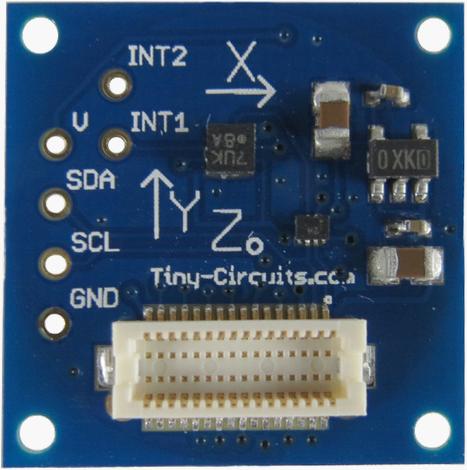

This Tinyshield features the high performance and low power Bosch
BMA250 3-axis accelerometer. The BMA250 allows measurement of
accelerations in three perpendicular axes and thus senses tilt,
motion, shock, and vibration in your projects. There is also an
integrated temperature sensor built in.

Even though the BMA250 is designed to run at 1.8V - the Accelerometer
TinyShield incorporates level shifters and a local power supply to
ensure proper and safe operation over the entire TinyDuino operating
voltage range up to 5V.

You can also use this shield without the TinyDuino - there are 0.1
spaced holes for power, ground, and the two I2C signals along the side
of the TinyShield to allow you to connect a different system.

Specifications:

* Ultra compact size and weight (smaller than a US Quarter!)

* Square Version: 20mm x 20mm (.787 inches x .787 inches)
* Max Height (from lower bottom TinyShield Connector to upper top
TinyShield Connector): 5.11mm (0.201 inches)
* Weight: TBD grams (TBD ounces)

* Bosch BMA250 Accelerometer

* 3-axix (X, Y & Z)
* Digital resolution: 10bit
* Resolution: 3.9mg
* Measurement ranges: +-2g, +-4g, +-8g, +-16g
* Sensitivity: 2g: 256LSB/g, 4g: 128LSB/g, 8g: 64LSB/g, 16g: 16LSB/g
* Zero-g offset (over lifetime): +-80mg
* Bandwidths: 1000Hz 8Hz
* Low Power: 139uA @2kHz data rate

* I2C Mode used

* Arduino pins A4 and A5 are used by this shield

* Built in level shifters and linear power supply to allow your
TinyDuino to run up to 5.0V operation.

To see what other TinyShields this board can be used with at the same
time with, see the TinyShield Compatibility Matrix [1]

Links:
------
[1] https://tiny-circuits.com/tinyshield-compatibility/
more

Specifications

Click 'show more' to display specifications.

General information

Manufacturer TinyCircuits
Product type Electronics modules
Item number5998624
Manufacturer no.ASD2611-R
