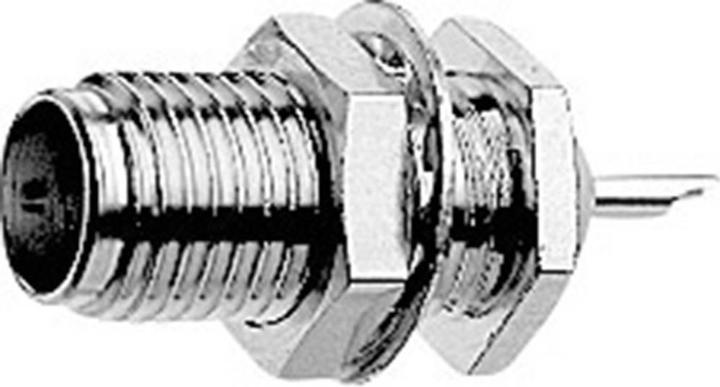

Telegärtner SMA connector
Product details
The SMA series includes commonly used coaxial connectors with screw locks. Depending on the design, they can be used up to a frequency of 18 GHz. The characteristic impedance is 50 Ohms. Connector variants are available for flexible, semi-flexible, and semi-rigid cables. The PCB connectors of the SMA series are available as solder or press-fit types. Cables can be connected depending on the design by crimping, clamping, or soldering. SMA connectors are used in mobile communications, satellites, and measurement technology, among other applications.
Cable + connector type | Plug connectors |
Plug type | SMA |
Item number | 36828704 |
Manufacturer | Telegärtner |
Category | Cables + Plugs |
Manufacturer no. | J01151A0891 |
Release date | 28.6.2023 |
Material group | Metal |
Material | Gold-plated brass |
Cable + connector type | Plug connectors |
Plug type | SMA |
Max. temperature | 155 °C |
Connectors Design | Socket, installation |
Items per sales unit | 1 pcs. |
