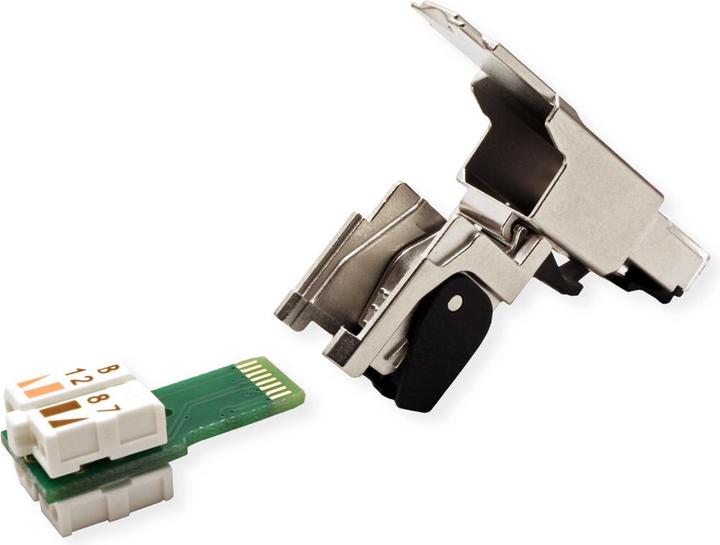

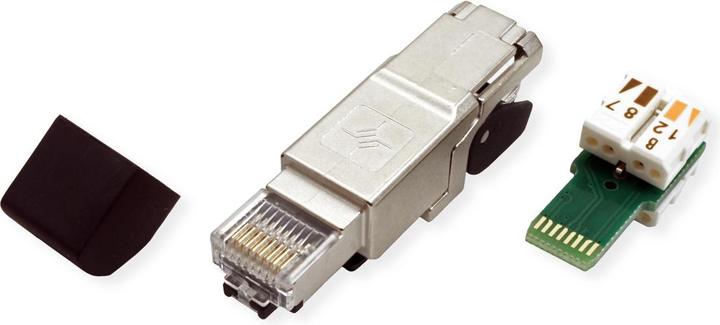

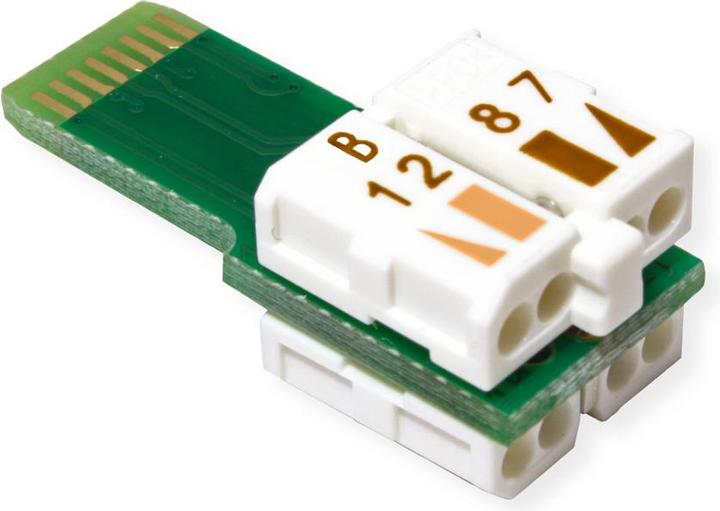

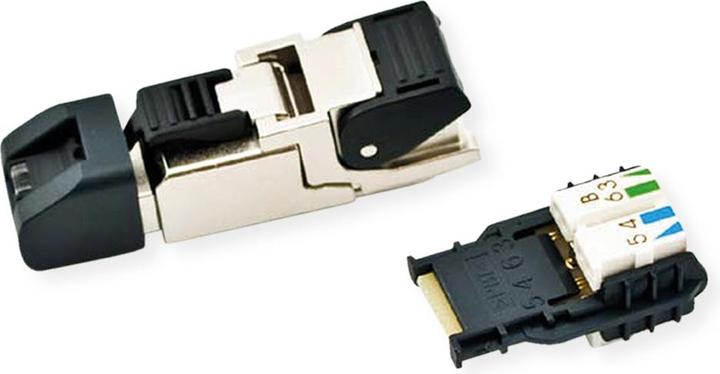

Telegärtner RJ45 Plug MFP8 T568 B Cat 6A
Free shipping starting at 50.–
Gender = Male
LAN Category = Cat.6a
Mounting type = cable mounting
Number of outlets = 8P8C
Connection type = Modular plug
Shield type = STP
Orientation = Straight
Length = 49mm
width = 16.2mm
depth = 13.8mm
Contact material = steel spring
Contact Coating = Nickel Gold Alloy
RJ45 plug T568B, Cat 6a, test bay mounting. Pre-assembled protective cap Robust die-cast zinc housing 360° shielding Complete metal shielding between pairs of wires Three strain relief settings (cable diameter 5.0 to 9.0 mm) Can be mounted in 60 seconds without special tools Optimized for the field, Suitable for cabling in office buildings, data centres, industrial plants and private networks Highest reliability Ideal for network repairs, special lengths and extensions Insertion contacts, suitable for conductor cross-sections AWG27/7 - 22/7; AWG24/1 - 22/1.
Plug type | RJ45 |
Cable + connector type | Male |
Cable length | 0.05 m |
Documents | |
Item number | 10275965 |
Manufacturer | Telegärtner |
Category | Cables + Plugs |
Manufacturer no. | J00026A2001 |
Release date | 24.12.2018 |
Sales rank in Category Cables + Plugs | 16 of 43649 |
Colour | Black, Silver |
Material group | Metal |
Material | Die-cast zinc, Nickel |
Cable + connector type | Male |
Plug type | RJ45 |
Compatible hardware | Various |
Max. temperature | 85 °C |
Min. temperature | -40 °C |
mounting type | Cable installation |
Cable length | 0.05 m |
Manufacturer Type | 100023038 |
Connectors Design | Plug, straight |
Number of cores | 8 x |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 Piece |
Scope of delivery | Plug incl. protective cap. |
Length | 4.90 cm |
Width | 1.38 cm |
Height | 1.62 cm |
Length | 13.50 cm |
Width | 10.30 cm |
Height | 5.50 cm |
Weight | 26 g |
