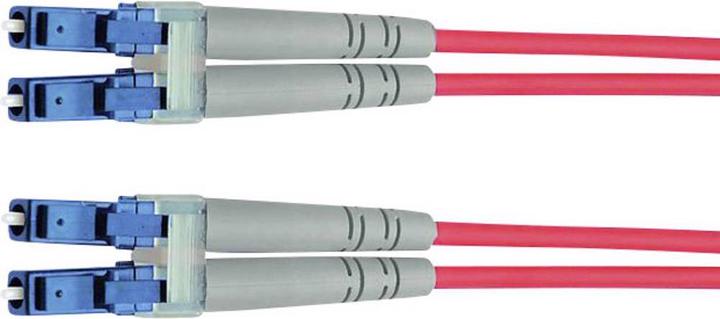

Telegärtner Patch cable

The LC-Duplex fiber optic patch cables from Telegärtner are suitable for use within structured cabling (ISO/IEC 11801), for example in data centers, office buildings, telecommunications rooms, and any other locations where fiber optic patch cables are needed. Patch cables are subjected to the highest loads and the greatest wear. Therefore, many users rely on Telegärtner patch cables: optimally coordinated components, the highest quality standards, a thoroughly controlled manufacturing process, and 100% attenuation measurement ensure safe and reliable network operation.

The patch cables in categories OM3-OM5 and OS2 feature bend-optimized fibers to enable optimal transmission even in tight spaces. Patch cables in standard lengths of 1, 2, 3, 5, and 10 meters are available from stock, and additional variants can be easily and quickly configured.

Performance features:

• Standard lengths: 1, 2, 3, 5, and 10 m, additional variants configurable
• Cable type: Duplex Zipcord 2.8 x 5.7, LSZH
• Connector S.1: LC-Duplex (IEC 61754-20)
• Connector S.2: LC-Duplex (IEC 61754-20)
• OM3, crossed (according to ISO/IEC 11801): Yes
• Design: PC
• IL typical < 0.25 dB
• RL typical > 30 dB
• Plug cycles: > 1000
• Application: Patch cable
• Fiber type: G50/125 OM3
• Housing color: turquoise
• Cable color: turquoise
• Connector design: LC Duplex
• Length: 5 m
• Cable dimensions mm: 2.8 x 5.7.
