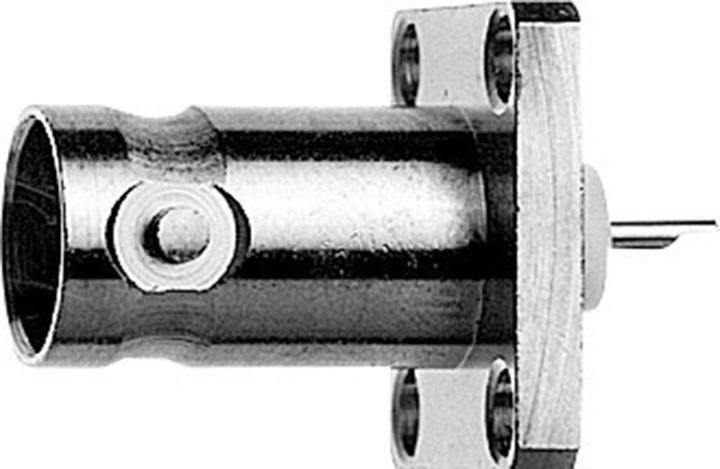

Telegärtner BNC panel jack with flange 50 Ohm, Z05, a=3-56" =M 2.5, UG-290/U

Ratings
Delivered between Fri, 13.6. and Thu, 19.6.
More than 10 items in stock at third-party supplier
Supplied by
JACOB DE

Product details

The Telegärtner BNC panel mount socket with flange is a high-quality connector designed for applications with an impedance of 50 ohms. This flange socket provides a reliable connection and is ideal for use in various electronic devices and systems. It meets MIL-Std. UG-290/U and is suitable for a temperature range of -40 to 155 degrees Celsius, making it well-suited for demanding environments. The socket is made of nickel-plated brass, which not only ensures high durability but also guarantees excellent electrical conductivity. With a mounting dimension of Z05 and a mounting type that requires flange installation, this product can be easily integrated into existing systems. The BNC panel mount socket is available in a sales unit of five pieces, making it a practical choice for projects that require multiple connections.

  • Reliable connection for 50 ohm applications
  • Temperature range of -40 to 155 degrees Celsius
  • Made of nickel-plated brass for high durability
  • Meets MIL-Std. UG-290/U
  • Easy flange mounting for versatile applications.

Key specifications

Plug type
DC connector
Cable + connector type
Plug connectors
Item number
14187245

General information

Manufacturer
Telegärtner
Category
Cables + Plugs
Manufacturer no.
J01001A0613
Release date
13.11.2020
External links
Manufacturer's site (de)

Material

Material group
Metal
Material
Nickel-plated brass

Cable + Connector Features

Cable + connector type
Plug connectors
Plug type
DC connector
Max. temperature
155 °C
Min. temperature
-40 °C
mounting type
Flange mounting
Manufacturer Type
100023398
Connectors Design
Flange bushing

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
5 Piece

30-day right of return
24 Months Warranty (Bring-in)
