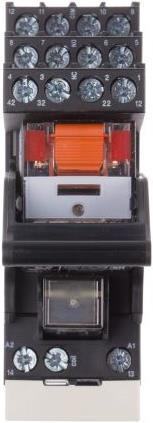

TE Connectivity 4PDT DIN relay package,230 Vac logical

Ratings
BrandMore from TE Connectivity
Delivered between Mon, 29.6. and Wed, 1.7.
More than 10 pieces in stock at third-party supplier
Supplied by
free shipping

Electric current output3

Product details

Coil voltage: 230V AC
Contact arrangement: 4-pole changeover
Switching current: 6 A
Connection type: Screw
Coil resistance: 19.465 kΩ
Application type: Interface
Length: 77 mm
Depth: 27.2 mm
Height: 78.3 mm
Dimensions: 77 x 27.2 x 78.3 mm
Max. switching power AC: 1.5 kVA

VDE interface modules, PT relays. The package includes relays, DIN rail socket, module, holder, and marking flag. Mechanical and electrical indicator for manual testing. DC version with LED and protection diode module. AC versions complete with LED and varistor module. The DIN coupling has a logical arrangement of control/load connections, with a second A2 terminal for easier wiring. Complies with IEC 61810-1.

Key specifications

Input voltage
230 V
Electric current output
6000 mA
Number of poles
4x

General information

Item number
10102963
Manufacturer
TE Connectivity
Category
Relays
Manufacturer No.
PT5L8TD0 2-1415535-0
Release date
13.11.2018

Relay properties

Input voltage
230 V
Electric current output
6000 mA
Resistor
19465 Ω
Switching function
Changer
Number of poles
4x

Voluntary climate contribution

CO₂ emissions
0.99 kg
Climate contribution
CHF 0.11

Product dimensions

Length
77 mm
Width
28 mm
Height
79 mm
