Supermicro X10slm-F

LGA 1150, Intel C224, mATX
7Ratings
Currently out of stock

Product details

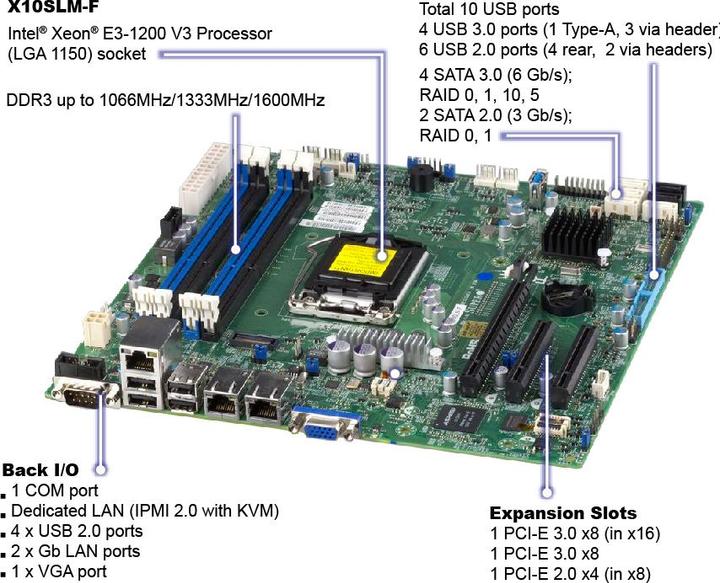

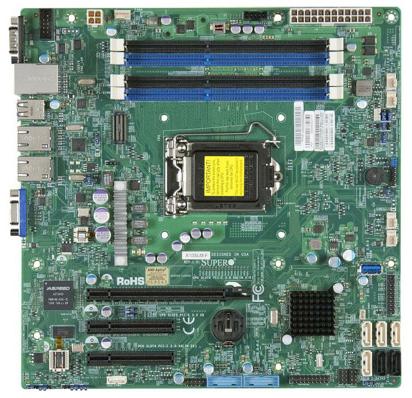

The Super Micro Computer X10SLM-F is a powerful Micro ATX motherboard designed for a variety of applications. It supports the LGA 1150 processor socket and is equipped with the Intel C224 chipset, ensuring high compatibility with various Intel processors, including the Xeon E3 v3 and the 4th generation Core i3. The motherboard provides a solid foundation for server and desktop applications and features four DIMM slots that support up to 32 GB of DDR3 RAM. The integrated graphics and a wide range of connectivity options, including USB 3.0 and Gigabit LAN, make it a flexible choice for users who require both performance and connectivity. With features such as a Trusted Platform Module (TPM) and RAID configurations, the X10SLM-F also offers enhanced security and storage options.

  • Supports up to 32 GB of DDR3 RAM with ECC support
  • Integrated graphics with VGA port
  • Two Gigabit LAN ports for high network speed
  • Four USB 3.2 Gen 1 ports for fast data transfer
  • Five fan connectors for improved cooling options.

Key specifications

Processor family
Celeron, Core i3 4th Gen, Pentium, Xeon E3 v3
Memory type
DDR3-RAM
Number of memory modules (RAM)
4 x
Internal connection options
S-ATA III (4x)
Mainboard features
Trusted Platform Module
Item number
659850

General information

Manufacturer
Supermicro
Category
Motherboards
Manufacturer no.
MBD-X10SLM-F-O
Release date
30.9.2013
External links
Specifications (en)

Motherboard properties

Form factor
Micro ATX (mATX)
Socket
LGA 1150
Chipset
Intel C224
Mainboard features
Trusted Platform Module
BIOS type
Ami

Processor

Processor family
Celeron, Core i3 4th Gen, Pentium, Xeon E3 v3

Memory

Memory form factor
DIMM
Number of pins
240 x
Number of memory modules (RAM)
4 x
Max. memory (RAM)
32 GB
Memory chip
DDR3-1066 (PC3-8500), DDR3-1333 (PC3-10666), DDR3-1600 (PC3-12800)
Supported memory speed
1600 MHz
Memory type
DDR3-RAM
RAM buffer
Error Correcting Code

Graphics properties

Video connections
VGA (1x)

Network

Network connections
RJ45 (2x)
Ethernet controller brand
Intel, Realtek
Ethernet controller
Realtek RTL8201N
Max. port speed
1 Gbit/s

Data storage

RAID configuration
0, 1, 10, 5

Internal interfaces

Internal connection options
S-ATA III (4x)
Expansion slot
PCI Express x16 (Gen 3) (1x), PCI Express x8 (1x)
Number of fan connector
5

Further connections

USB ports
USB-A
Exact USB ports
USB-A 3.2 Gen 1 (4x)

Power supply

Power connectors
24-pin ATX

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
IPMI v2.0- SuperDoctor III- Watch Dog- NMI

Product dimensions

Length
244 mm
Width
244 mm
Height
244 mm
