Spelsberg RKi 4/25-25x4q terminal block enclosure 180 x 254 x 90 plastic grey 1pc.
HousingDelivered between Mon, 18.8. and Mon, 25.8.
Supplied by
Conrad CH
free shipping
Product details

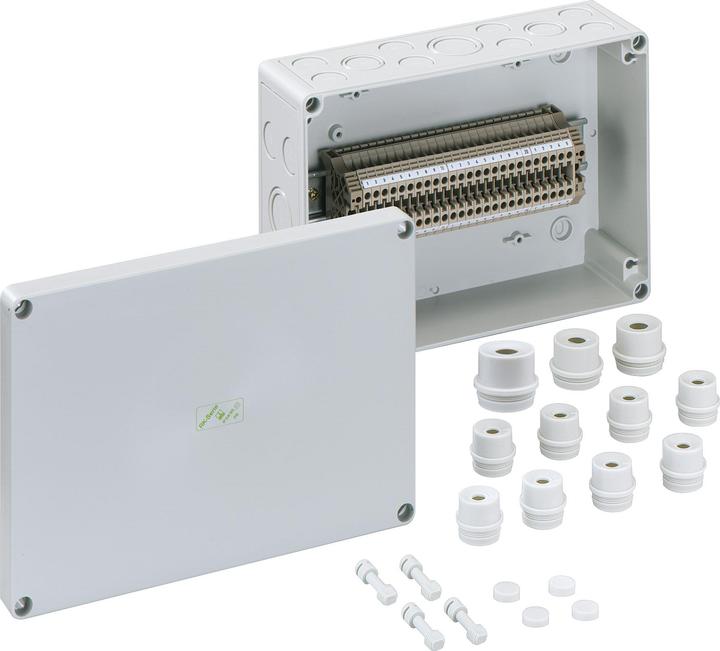

The RKi 4/25-25x4q terminal housing from Spelsberg is a robust and versatile solution for the secure accommodation of electrical connections. With an IP54/IP66 protection rating, it is suitable for use in industrial environments as well as in protected outdoor areas. The housing is made of high-quality polycarbonate and accommodates up to 25 screw terminals with a nominal cross-section of 4mm². The internal mounting points allow for easy installation and assembly. The housing is equipped with various mounting hubs that enable flexible cable entry, facilitating adaptation to different installation requirements. Its compact dimensions of 254 x 180 x 90 mm make it a practical choice for various applications in electrical engineering.
- Protection rating IP54/IP66 for versatile applications
- Made from durable polycarbonate
- Fitted with 25 screw terminals for a nominal cross-section of 4mm²
- Includes 8 mounting hubs IP54 M20, M25, and M32
- Suitable for industrial and protected outdoor applications.
Electrical engineering accessory type | Housing |
Item number | 31996794 |
Manufacturer | Spelsberg |
Category | Electronics supplies + Casing |
Manufacturer no. | 63502501 |
Release date | 24.10.2022 |
Colour | Grey |
Compatible hardware | Various |
Electrical engineering accessory type | Housing |
Manufacturer Type | 25-25x4q, RKi 4 |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Scope of delivery | equipped with 25 screw terminals 4mm³ (type Weidmüller WDU 4), For installations in industrial environments and protected outdoor areas, Internal fixing points, Nominal cross-section 4mm², Polycarbonate, Terminal block housing, Ui=400V AC, with protection class IP54/IP66 |
Length | 180 mm |
Width | 90 mm |
Height | 90 mm |
Length | 26.10 cm |
Width | 18.50 cm |
Height | 9.40 cm |
Weight | 1.07 kg |
