Spelsberg Empty housing GEOS-L 3040-22-to

Spelsberg empty enclosure GEOS-L 3040-22-to

Manufacturer: Spelsberg
Designation: Empty enclosure
Dimensions: 300 x 400 x 226 mm
Type: GEOS-L 3040-22-to
Width: 300 mm
Height: 400 mm
Depth: 226 mm
Material: Plastic
Material grade: Other
Finish: Other
Colour: Grey (RAL 7035)
Free-standing: No
Floor-standing wall model: No
Suitable for wall mounting: Yes
Corner model: No
Intermediate mounting: No
Can be coupled: No
With mounting plate: No
Mounting plate depth adjustable: Yes
Suitable for pole mounting: Yes
Suitable for metric mounting: No
Suitable for outdoor installation: Yes
Pitched roof: No
EMC version: No
With viewing door: No
With ventilation door: No
With rear door: No
Impact resistance: IK09
Protection class (IP): IP66
Protection class (NEMA): 4X
Heat loss capacity (Delta T 20 K) according to IEC/TR 60890: 30.6 W
Max. permissible load of enclosure/closet: No
Max. permissible load on enclosure/cabinet according to IEC 62208: 177 N
Max. permissible load on door(s) according to IEC 62208: 177 N
Permissible load of the door(s) according to IEC 62208: 40 N

Further details:

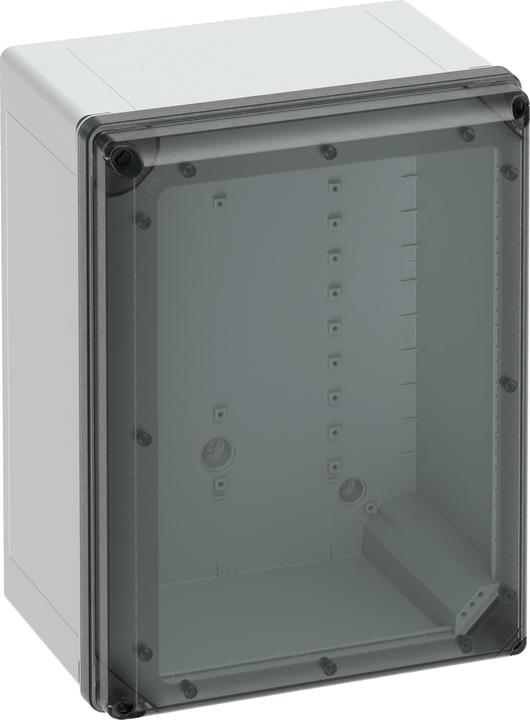

This empty enclosure is of industrial quality, suitable for installation in harsh environments and unprotected outdoor areas. The box is made of glass fibre reinforced polycarbonate in grey, similar to RAL 7035, with a transparent polycarbonate cover.
Dimensions: 300 x 400 x 226 mm
EAN: 4013902610938.
