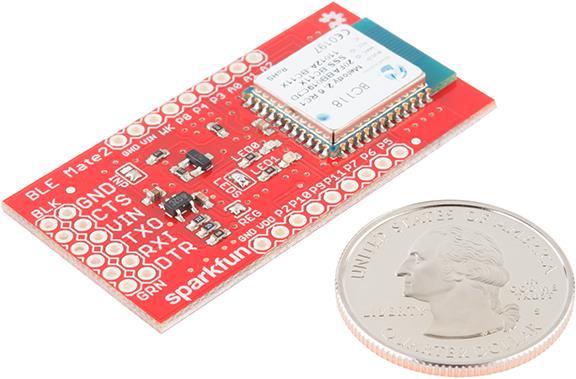

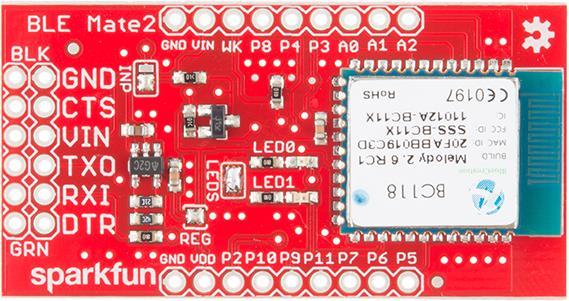

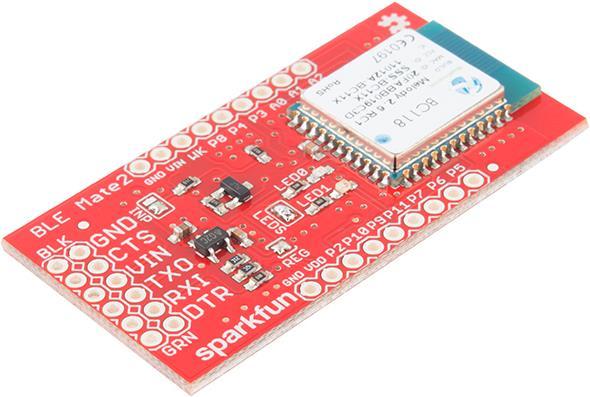

This is the SparkFun BLE Mate 2, an efficient and reliable Bluetooth
4.0 development board. The BLE Mate 2 closely resembles a breakout
board, in that nearly every pin on the on-board BC118 module is made
available to access. This board is actually a close cousin to our Gold
and Silver Bluetooth Mates and functions in a very similar way but, as
the name implies, operates as Bluetooth Low Energy instead of
Bluetooth 2.0.

The BLE Mate 2 offers a six-pin header on the end opposite the BC118
module which is used as a "host" serial pinout, the same as that on
the FTDI Basic boards, which allows the BLE Mate 2 to be connected
directly to any device with a matching header, such as the SparkFun
Arduino Pro and Pro Mini. Coupled with the FTDI SmartBasic, you can
even develop your code without having to swap cables! The board has
built-in level translation, so it can be used with boards of higher
voltage than the 3.3V default used by the BC118.

Each BLE Mate 2 offers BC118 module that is capable of accepting and
transmitting via the UART at 9600bps (default) with a frequency band
of 2,402 MHz to 2,480 MHz.

The SparkFun BLE Mate 2 only supports Bluetooth 4.0; it won't connect
to older devices. It's also worth noting that BLE does not support a
Serial Port Protocol as older versions of Bluetooth did; that makes
interoperability between BLE dongles, devices, and modules harder than
with Bluetooth Classic.


* Bluetooth Certified 4.0 (BLE)
* Supply Voltage: 3.3V to 4.7 VDC
* Low power consumption : 16mA avg
* Frequency Band: 2,402 MHz to 2,480 MHz
* Operating Range: 30m
* Built-in antenna


* GitHub [1] (Library)
* GitHub [2] (Example Code & Design Files)



Click 'show more' to display specifications.

General information

Manufacturer SparkFun
Product type Electronics modules
Item number5999116
Manufacturer no.WRL-13019
