Sonoff Nextion Intelligent 5 inch 800x480 TFT Touch Display

1Ratings
BrandMore from Sonoff
Delivered between Tue, 20.5. and Wed, 21.5.
More than 10 items in stock at third-party supplier
Supplied by

Product details

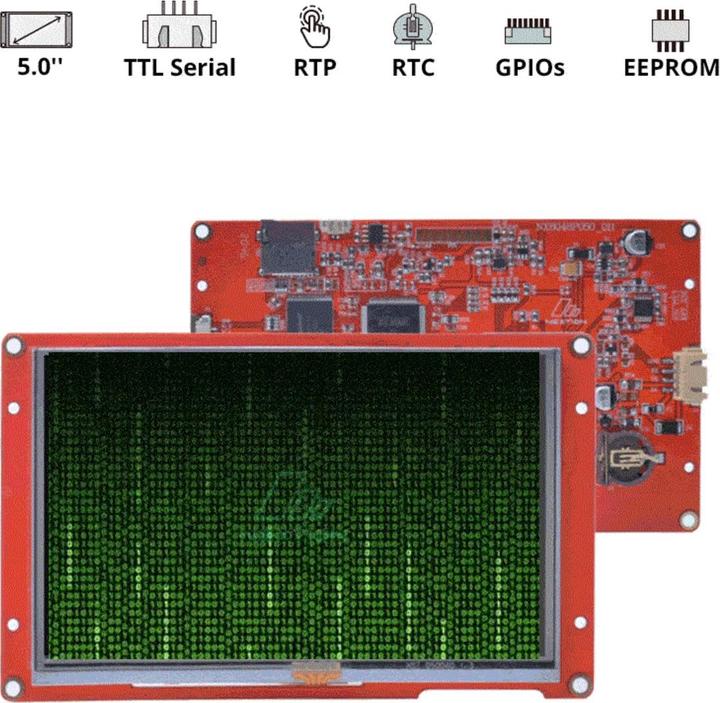

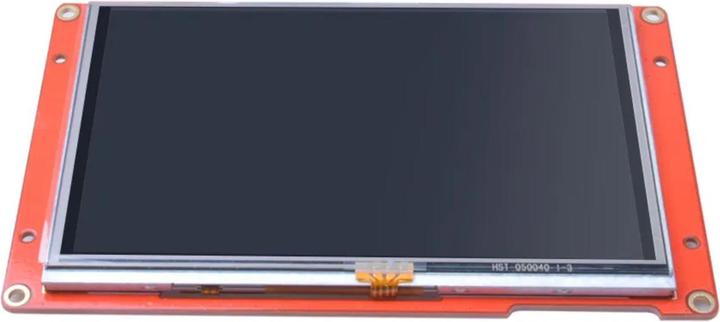

The Nextion NX8048P050-011R from iTead is a 5-inch 800x480 TFT LCD touch display. You can use the display as a user interface for your Arduino, ESP8266, or Raspberry Pi projects. The NX8048P050-011R is part of the Intelligent series and features more Flash/SRAM memory, a higher clocked MCU, an RTC, and software features like transparent components, page loading effects, and component move and drag. For control with Arduino, you will find many examples available.

Features:

  • TFT Touch Display
  • 5 inch 800x480
  • 128MB Flash
  • 512KB RAM
  • Real Time Clock RTC chip (CR1220 battery)
  • Supports 8 GPIO
  • Max 32GB microSD slot

Technical Details:

  • Manufacturer: iTead
  • Model: NX8048P050-011R
  • Input voltage: 5V
  • Current: 0.22 A
  • Colour: 65K RGB
  • Resolution: 480x272
  • Display size: 5 inch
  • Touch Panel: Resistive
  • MCU: ARM Cortex 200MHz
  • Memory: 128MB Flash, 512KB SRAM
  • USART Port: XH2.54 4P
  • Operating temperature: -30°C - 85°C
  • Dimensions: 136.9 x 84 x 6mm
  • Weight: 172g

Scope of delivery:

  • 1x Nextion Intelligent 5 inch 800x480 TFT Touch Display
  • 1x 4pin connection cable
  • 1x 5V Micro USB Breakout Board.
