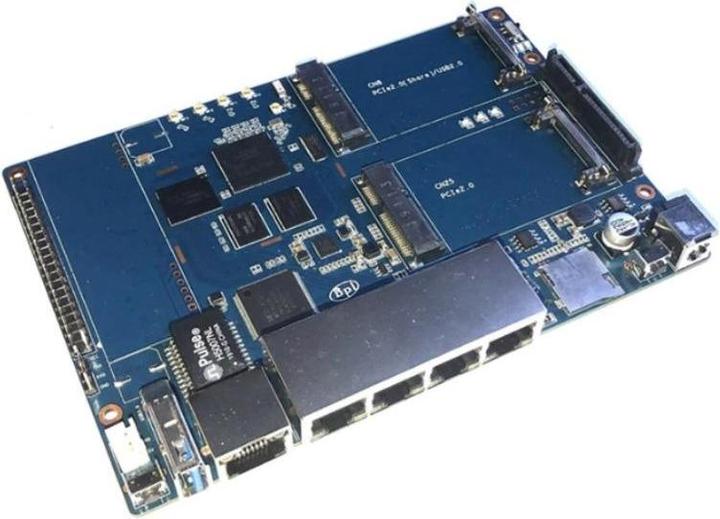

Banana Pi BPI-R64 - Open Source Router
The Banana Pi BPI-R64 is an open source router compatible with a variety of open source operating systems, including OpenWrt and Linux. It features 4 Gigabit LAN ports and one Gigabit WAN port. Additionally, it has an AP function and a 64-bit chip design. With integrated Wi-Fi and Bluetooth, the Banana Pi can be used as a router/repeater, home automation gateway, Wi-Fi audio device, and external Wi-Fi hard drive. Overall, the BPI-R64 is a high-performance device with a wide range of functionalities and high cost-effectiveness.
Note: No HDMI interface
- CPU: MediaTek MT7622; 1.35 GHz, 64-bit, Dual-core ARM Cortex A53
- SDRAM: 1 GB DDR3
- Low-Level Peripherals: 40-pin header, 28 GPIO, some of which can be used for special functions like UART, I2C, SPI, PWM, and I2S
- Network Interface: 5x 10/100/1000 Mbps Ethernet
- Wi-Fi: Built-in 4x4n 802.11n (800 Mbps) system on chip; MTK7615 4x4ac module (1733 Mbps) is optional
- Bluetooth: 5.0 system on chip
- Internal Storage: MicroSD (TF) card, 8 GB eMMC
- Interfaces: 1x Mini-PCIe for 4G; 1x USB 3.0 host; 1x SATA interface
- Button: Reset
- LEDs: Power status, RJ45
- IR: IR receiver included
- Power Supply: 12 V/2 A, DC
- PoE: PoE module interface, PoE module can be added
- Dimensions: 148 mm x 100.5 mm
- Weight: 100 g.
