Siemens Time Relay Star Delta

Ratings
BrandMore from Siemens
Delivered between Fri, 11.7. and Tue, 22.7.

Product details

Supply voltage: 12 to 240 V
Time range: 0.05 to 360000 s
Operating mode: Star/Delta
Mounting type: DIN rail
Number of time functions: Multifunction
Number of contacts: 2
Time unit: Seconds
Power supply: External
Contact arrangement: 2-pole normally open
Max current: 1 (DC) A, 3 (AC) A
Connection type: Screw fastening
Width: 17.5 mm

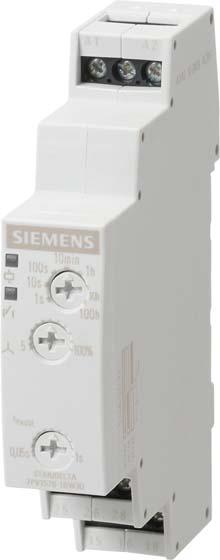

Siemens SIRIUS 7PV15 – Star-Delta timer. Semiconductor time relay from the 7PV15 series for general use in control, starting, and protection circuits for all switching operations with delays, e.g., in public buildings, airports, industrial buildings, etc. Star-Delta function, rotary switch on the front, LED display for switch position and voltage, wide voltage range, integrated current surge suppression, 17.5 mm width, DIN rail mounting.

Key specifications

input voltage
240 V
Output voltage
240 V
Output current type
AC, DC
Relay type
Time relay
Item number
9736066

General information

Manufacturer
Siemens
Category
Relays
Manufacturer no.
7PV1578-1BW30
Release date
24.9.2018
External links
Manufacturer's site (de)

Relay properties

Relay type
Time relay
input voltage
240 V
Output voltage
240 V
Output current type
AC, DC
Manufacturer Type
7PV1578-1BW30

Smart home features

Smart Home
Not compatible

Origin

Country of origin
Czech Republic

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer Siemens fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Product dimensions

Length
66.70 mm
Width
17.50 mm
Height
90 mm
