Siemens Dig.Industr. SIPLUS S7-1500 DI 6AG1521-1BH00-7AB0

Manufacturer: Siemens Dig.Industr.

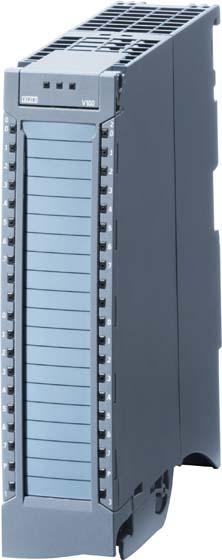

Designation: SIPLUS S7-1500 DI 16x24VDC HF
Type: 6AG1521-1BH00-7AB0
Supply voltage at DC: 19.2..28.8 V
Type of supply voltage: DC
Number of digital inputs: 16
Configurable digital inputs: yes
Input current at signal 1: 2.5 mA
Permissible voltage at input: -30..30 V
Type of input voltage: DC
Type of digital output: none
Redundancy capability: no
Type of electrical connection: plug connection
Delay time on signal change: 0.05..20 ms
Suitable for safety functions: no
Associated equipment (Ex ia): no
Associated equipment (Ex ib): no
Explosion protection category for gas: ATEX Gas-Ex protection, Cat. 3G
Explosion protection category for dust: none
Width: 35 mm
Height: 147 mm
Depth: 129 mm

Further details:
SIPLUS S7-1500 DI 16x24VDC HF is based on 6ES7521-1BH00-0AB0 with conformal coating, -40 +70°C, digital input module, 16 channels in groups of 16, input delay 0.05..20 ms, input type 3 (IEC 61131), diagnostics, process alarms.

SIMATIC ET 200MP is a modular, scalable, and universally applicable peripheral system in IP20 and offers the same system advantages as the S7-1500. It allows for the shortest bus cycle times and fastest response times even with large quantities. The decentralized peripheral system is particularly easy to assemble, wire, and commission. Due to its scalable design, you can align the peripheral station exactly to the specific needs on-site. Like the CPU, the digital input modules are also protected against extreme environmental conditions. With 100% conformal coating, they resist biological, chemical, and mechanically active substances, condensation, frost, and harmful gases. No matter the conditions - your digital signals will be reliably captured.

EAN: 4042948656334.
