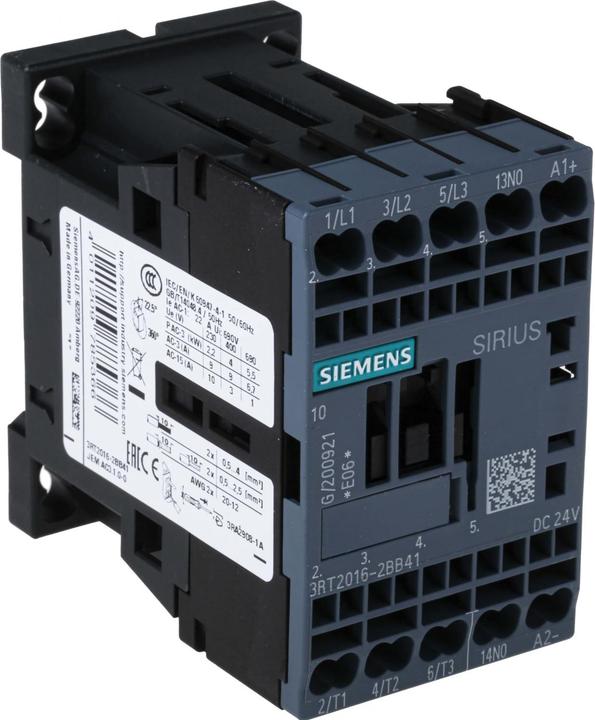

Power relay, AC-3e/AC-3, 9 A, 4 kW / 400 V, 3-pole, DC 24 V, auxiliary contacts: 1 NO, spring terminal connection, size: S00. SIRIUS 3RT2 power relay for motor switching. The 3RT2 relays are part of the SIRIUS modular system with optimally coordinated products. They impress with high performance while maintaining a compact design and high contact reliability. They can be combined in various ways with other components in the consumer branch. Many of the device combinations are factory-tested. The relays offer the optimal connection to the control system for every application (parallel, via ASI or IO-Link). Integrated auxiliary contacts reduce the complexity of your setup. The front connections allow for easy wiring. The 3RT2 relays are climate-resistant, globally approved (e.g., IEC and UL/CSA), and IE3/IE4 ready. They are available in various sizes and a wide power range for AC and DC operation. In addition to screw connection technology, the devices are also fully available with spring terminal connections for a quick, maintenance-free, and vibration-resistant connection. The comprehensive accessories, such as auxiliary contacts, auxiliary relays, etc., are uniform across all sizes. The available connection blocks, functional modules, and the SIRIUS 3RV29 power supply system significantly reduce wiring effort. The 3RT2 power relays replace the proven 3RT1 series (up to 55 kW). Simple, efficient, always up to date - the SIRIUS modular system.
input voltage | 24 V |
Scope of delivery | 1S, 3P, Contactor 24DC 4KW/400V |
Output voltage | 24 V |
Output current type | DC |
Electric current output | 9 A |
Relay type | Switching relay |
Item number | 9732061 |
Manufacturer | Siemens |
Category | Relays |
Manufacturer no. | 3RT2016-2BB41 |
Release date | 24.9.2018 |
Relay type | Switching relay |
input voltage | 24 V |
Output voltage | 24 V |
Electric current output | 9 A |
Output current type | DC |
Number of openers | 1 x |
Number of closers | 3 x |
Number of poles | 3 x |
Max. Switching capacity | 4 kW |
Manufacturer Type | 3RT2016-2BB41 |
Smart Home | Not compatible |
Country of origin | China |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer Siemens fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1S, 3P, Contactor 24DC 4KW/400V |
Length | 80 mm |
Width | 45 mm |
Height | 70 mm |
Length | 8.60 cm |
Width | 8.40 cm |
Height | 4.60 cm |
Weight | 308 g |
