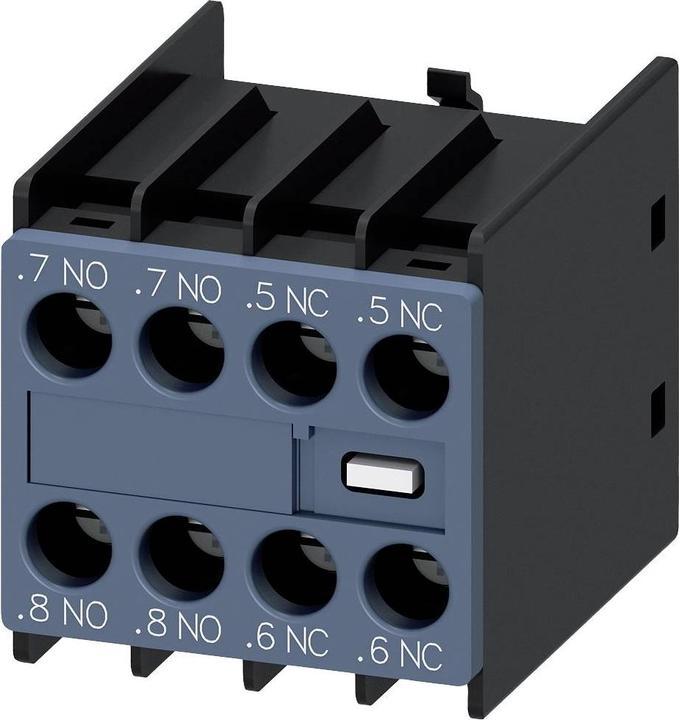

Siemens Auxiliary switch for contactor

Siemens Digital Industry Auxiliary Switch Block 3RH2911-1FC22

Manufacturer: Siemens Digital Industry
Description: Auxiliary Switch Block 22U 2S+2Ö
Type: 3RH2911-1FC22
Rated Operating Current Ie at AC-15, 230 V: 6 A
Connection Type: Screw Connection
Design: Plug-on
Mounting Type: Other
Base: Without

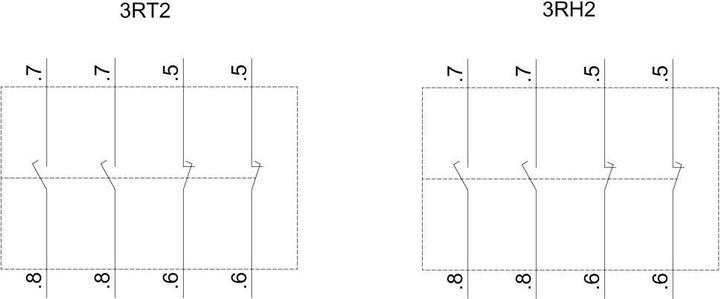

Additional Details: Auxiliary switch, front-mounted, 2 S + 2 Ö, 22 U, .7/.8, .7/.8, .5/.6, .5/.6, Circuit: 1 S (leading), 1 S (leading), 1 Ö (trailing), 1 Ö (trailing), screw connection, for contactors 3RT2 and auxiliary contactors 3RH2. SIRIUS auxiliary switch 3RH29 for expanding auxiliary contacts in the control circuit. The front-mounted auxiliary switches 3RH29 can be mounted without tools and are size-independent on contactors 3RT2 and auxiliary contactors 3RH2. The auxiliary switches 3RH19/3RH29 are available as front-mounted or side-mounted variants, with up to four instant switching or up to two leading switching normally closed and normally open contacts. The auxiliary switches can be designed as forcibly guided contact elements in auxiliary contactors 3RH or as mirror contacts in power contactors 3RT. They are continuously available with screw connection and spring-loaded connection. Simple, efficient, always up to date - the SIRIUS system modular kit.
EAN: 4011209829411.
