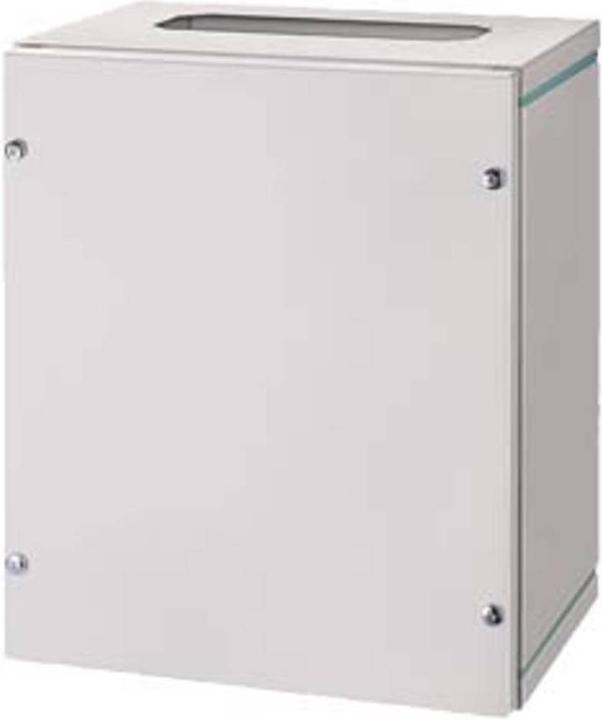

Siemens ALPHA 630 Patch panel IP43 protection class.

Siemens Dig.Industr. ALPHA 630, Distribution Board 8GK1382-0KK12

Manufacturer: Siemens Dig.Industr.
Designation: ALPHA 630, Distribution Board
IP Protection: IP43
Protection Class: Type 8GK1382-0KK12
Mounting Type: Other
Type of Cover: Lid
Lid Design: Without
Type of Door: Single
Transparent Lid/Door: No
With Lock: Yes
Rated Current (In): 630 A
Height: 350 mm
Width: 300 mm
Depth: 210 mm
Installation Depth: 210 mm
Internal Depth: 210 mm
Material Thickness Door/Lid: 0.75 mm
Color: Gray
RAL Number: 7035
Number of Openings for Flange Plates: 2
Mounting Option: Yes
Housing Material: Steel
Surface Protection: Powder Coated
With Mounting Plate: No
Suitable for Outdoor Use: No
Suitable for Lightning Protection: Yes
Protection Class (IP): IP43
Protection Class (NEMA): Other
Protection Class: I
Impact Resistance: IK09
Function Maintenance: None

The ALPHA installation distribution boards are a complete system of wall and floor-mounted distribution boards for the installation of devices up to 1250 A. The ALPHA distribution systems are tested according to IEC 61439. Due to the modular design and a common platform structure, device-specific installation kits can be integrated into various distribution board variants. This facilitates planning and installation. The equipment is customized and project-specific. The configuration software SIMARIS configuration supports everything from planning to documentation of the energy distribution and installation boards. The ALPHA distribution systems are available in a wide range of designs and many special colors. The doors can be made of glass or steel. ALPHA - the system concept matters.
EAN: 4001869304380.
