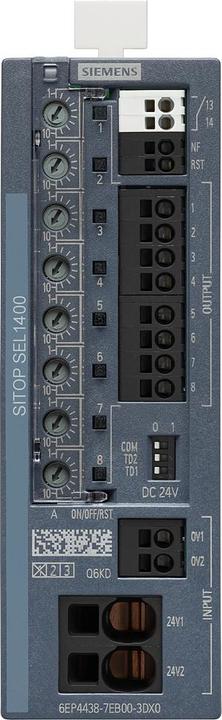

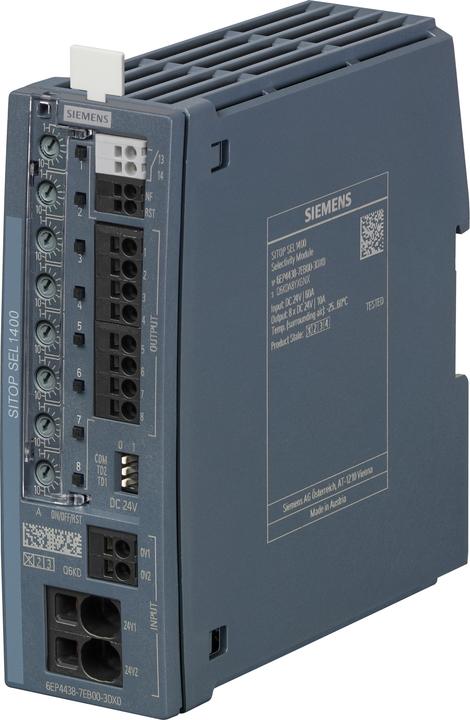

Siemens 6EP4438-7EB00-3DX0

Siemens Dig.Industr. SITOP SEL1400

Manufacturer: Siemens Dig.Industr.
Designation: SITOP SEL1400 Selectivity module
Type: 6EP4438-7EB00-3DX0
Electrical connection type: Spring-cage connection
With detachable terminals: No
Contains function DC voltage undercurrent: No
Contains function DC voltage overcurrent: Yes
Function DC current window: Yes
Rated control supply voltage Us at DC: 20.4 - 30 V
Voltage type for operation: DC
Max. permissible response delay time: 5 s

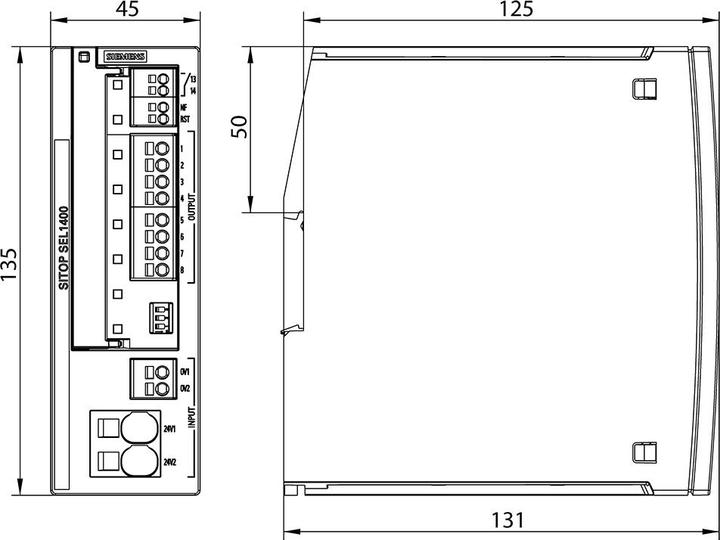

Width: 45 mm
Height: 135 mm
Depth: 125 mm

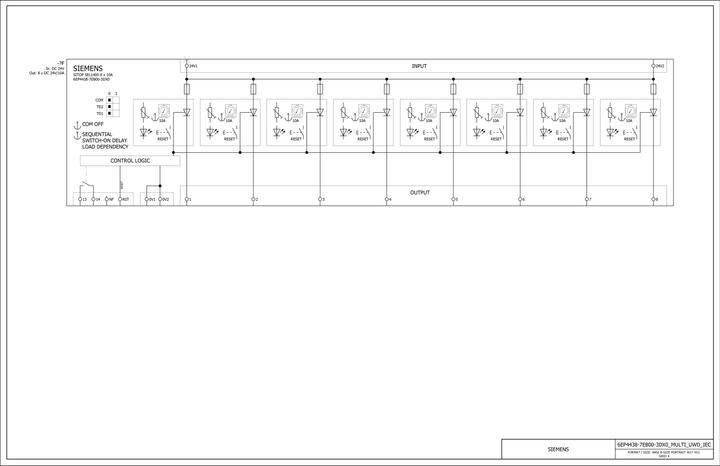

Further details: SITOP SEL1400 10 A selectivity module, 8-channel with limiting characteristic
Input: DC 24 V/60 A
Output: DC 24 V/8x 10 A
Threshold value adjustable: 2 - 10 A with monitoring interface

The SITOP SEL1400 selectivity module is the optimum addition to all 24 V power supplies for splitting and monitoring the load current on several current branches. Overload and short-circuit in one or more branches are reliably detected. Short-term current peaks, due to high inrush current, are allowed by the electronics; branches with longer overloads are de-energised. This is ensured even on high-impedance lines and with creeping short circuits. The intact feeders are supplied with 24 V without any interruption or feedback, thus minimising system downtimes. The faulty feeder is signalled via LEDs on the unit as well as via a group signal contact or diagnostic monitor. Regardless of the industry and requirements, Siemens offers reliable and efficient power supplies for every system.
