Name: 6EP4438-7FB00-3DX0 SITOP SEL1200 DC 24V/8x2... 10A Selectivity module
Brand: Siemens
SKU: 31939248
Price: 185.05 CHF
Availability: InStock

productDetailPageQuery

Siemens

Siemens Dig.Industr. SITOP SEL1200 6EP4438-7FB00-3DX0

Manufacturer: Siemens Dig.Industr.
Designation: SITOP SEL1200 Selectivity module
Type: 6EP4438-7FB00-3DX0
Electrical connection type: Spring-loaded connection
With detachable terminals: No
Contains DC voltage undercurrent function: No
Contains DC voltage overcurrent function: Yes
DC current window function: Yes
Rated control supply voltage Us at DC: 20.4 - 30 V
Voltage type for operation: DC
Max. permissible response delay time: 5 s

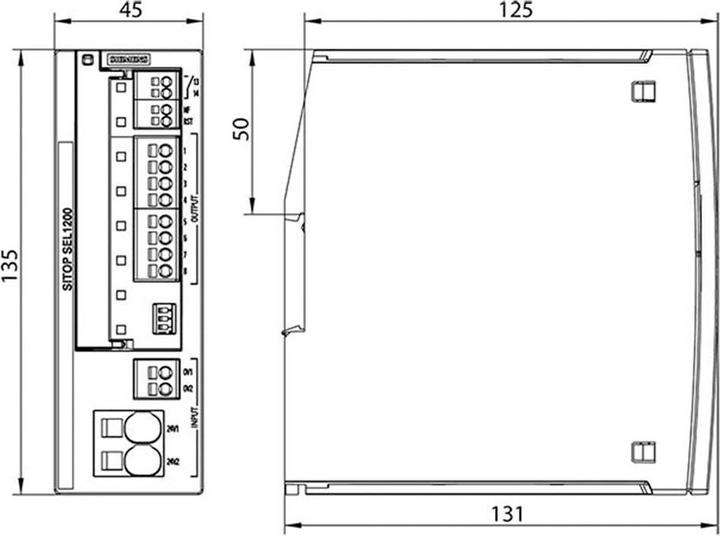

Width: 45 mm
Height: 135 mm
Depth: 125 mm

Further details: SITOP SEL1200 selectivity module with 8-channel switching characteristic.
Input: DC 24 V/60 A
Output: DC 24 V/8 x 10 A
Threshold value adjustable: 2-10 A with monitoring interface

The SITOP SEL1200 selectivity module is the optimum addition to all 24 V power supplies for splitting and monitoring the load current on several current branches. Overload and short-circuit in one or more branches are reliably detected. Short-term current peaks, such as those caused by high inrush current, are allowed by the electronics; branches with longer overloads are de-energised. This is ensured even on high-impedance lines and with creeping short circuits. The intact feeders are supplied, thus minimising downtimes of the system. The faulty branch is signalled via LEDs on the unit as well as via a group signal contact or diagnostic monitor. Regardless of the industry and requirements, Siemens offers reliable and efficient power supplies for every system.

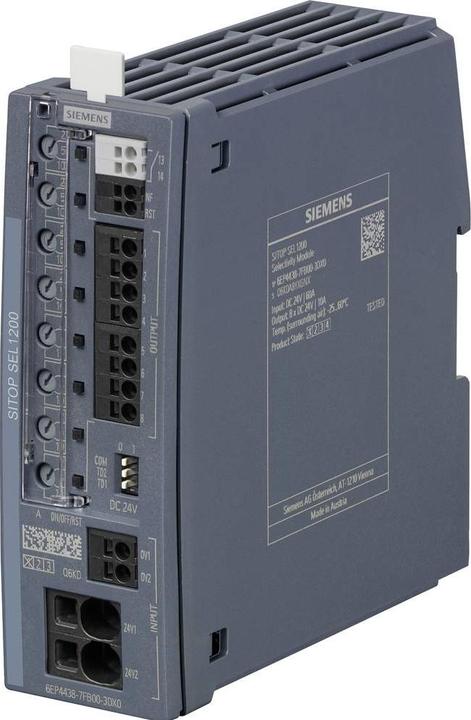

Actual product image Siemens 6EP4438-7FB00-3DX0 SITOP SEL1200 DC 24V/8x2... 10A Selectivity module
