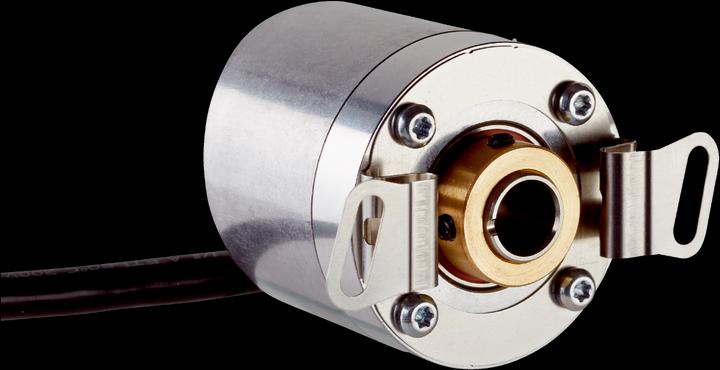

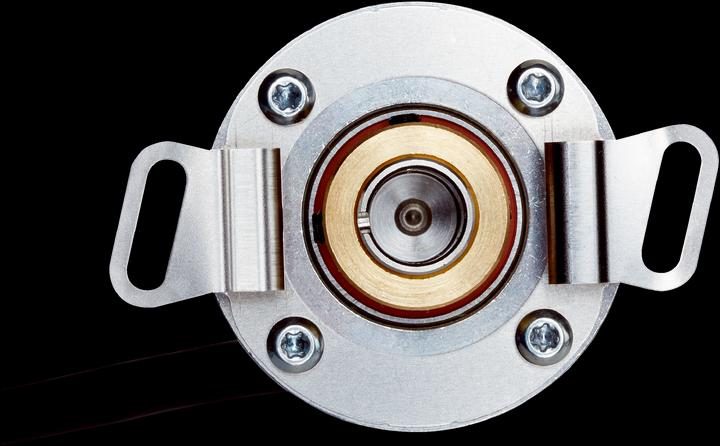

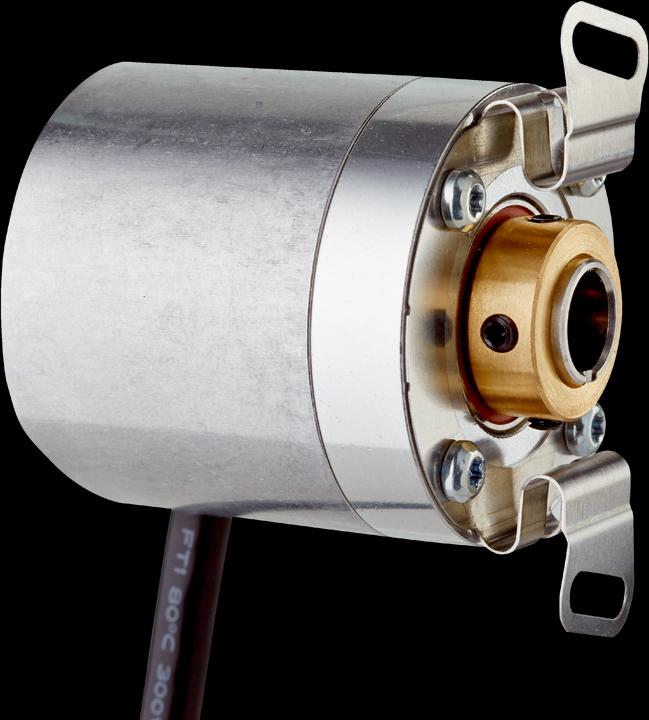

Sick Rotary encoder

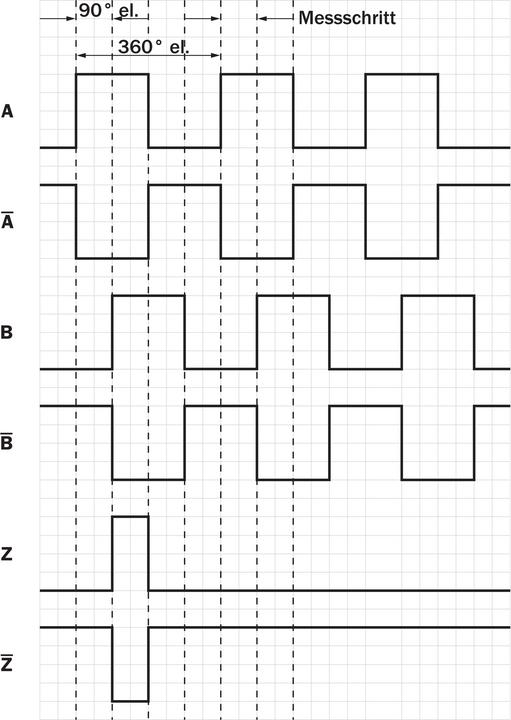

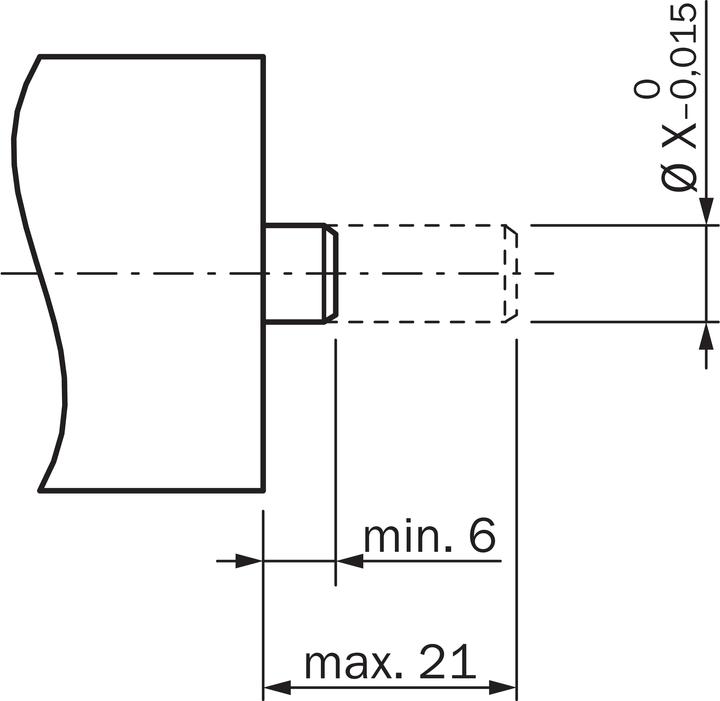

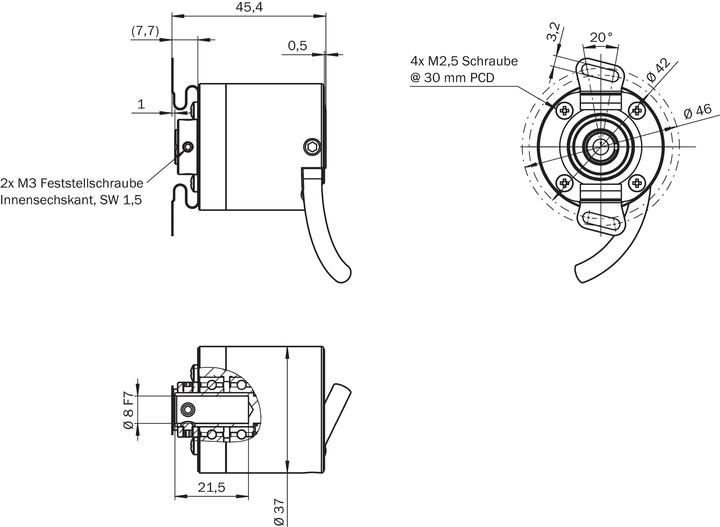

The DBS36 Core Series incremental encoder from Sick is a high-precision electronic module designed for a wide range of applications in automation technology. With a resolution of 1000 pulses per revolution, this encoder provides accurate position determination and is ideal for use in demanding environments. The mechanical design features an 8 mm hollow shaft for easy integration into existing systems. The encoder supports a wide supply voltage range of 7 to 30 V and is equipped with an HTL push-pull interface that ensures reliable signal transmission. With an operational speed range of up to 6000 min⁻¹ and high resistance to vibrations, it is a robust solution for industrial applications. Additionally, the encoder offers a long lifespan with a mean time to a dangerous failure of 600 years, making it a reliable choice for critical applications.

• Operating temperature range of –20 °C to +85 °C, extendable to –35 °C to +95 °C upon request
• Vibration resistance up to 20 g at frequencies from 10 Hz to 2000 Hz
• Initialization time of less than 3 ms for fast response times
• Allowable shaft movement dynamically: ± 0.1 mm radially and ± 0.2 mm axially
• Output frequency of up to 300 kHz for high signal processing speed.
