Sick Luminescent scanner TW 50mm NPN PNP LUT3-650

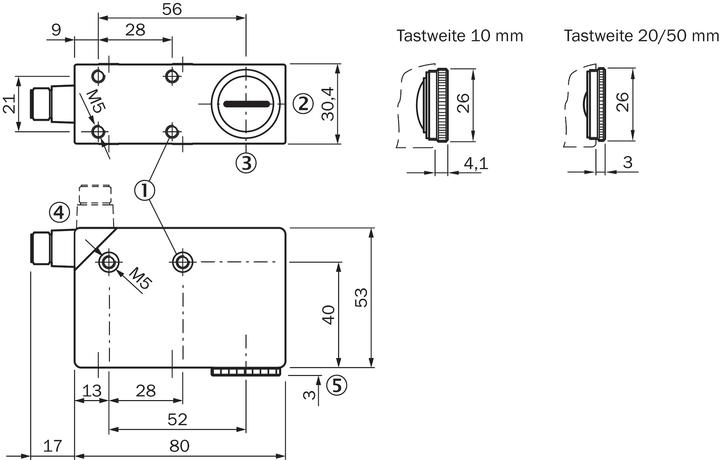

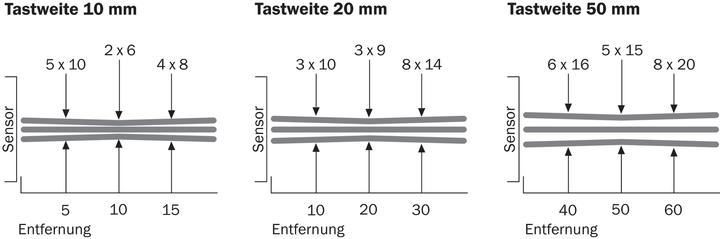

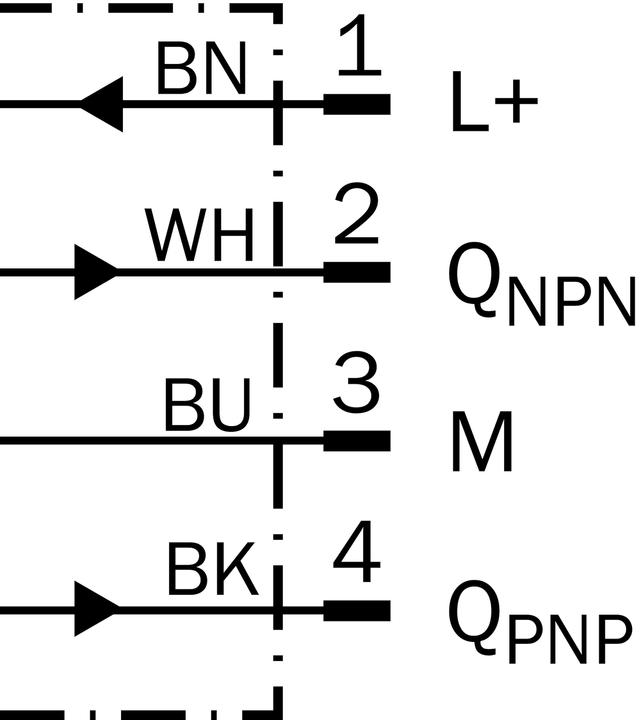

Sick luminescent pushbutton LUT3-650 Manufacturer :Sick Designation :Luminescent pushbutton TW:50mm NPN,PNP Type :LUT3-650 Illuminant :other Analogue output 0 V ... 10 V :yes Analogue output 0 mA ... 20 mA :yes Analogue output 4 mA ... 20 mA :no Analogue output -10 V ... +10 V :no Electrical connection version :M12 plug connector Number of semiconductor outputs with signalling function :2 Switching output version :PNP Switching function version :NO contact (NO) With blanking function :no Equipment protection class :Protection class 2 Width of sensor :30.4 mm Height of sensor :53 mm Length of sensor :80 mm Adjustment method :other Housing design :cuboid Open-circuit current :60 mA Type of light :other Light spot :75 mm² With fibre-optic connection :no Max. output current :100 mA Rated load current :100 mA Output current :100 mA Nominal scanning range :50 mm Switching frequency :1500 Hz Protection class (IP) :IP67 Voltage type :DC Ambient temperature :-10...55 °C With interchangeable lens :yes Housing material :zinc With time function :no Sick luminescence sensor LUT3-650: more details Luminescence sensors, LUT3, LUT3-650, Light emitter: LED, Ultraviolet light, Scanning range: 50 mm, Reception range: 450 nm ... 750 nm, Switching output: PNP, NPN, Switching mode: Light switching, Light spot size: 5 mm x 15 mm, Connection type detail: M12 plug, 4-pin, Light spot position: Longitudinal, Light emission: Long side , EAN: 4047084113208.
