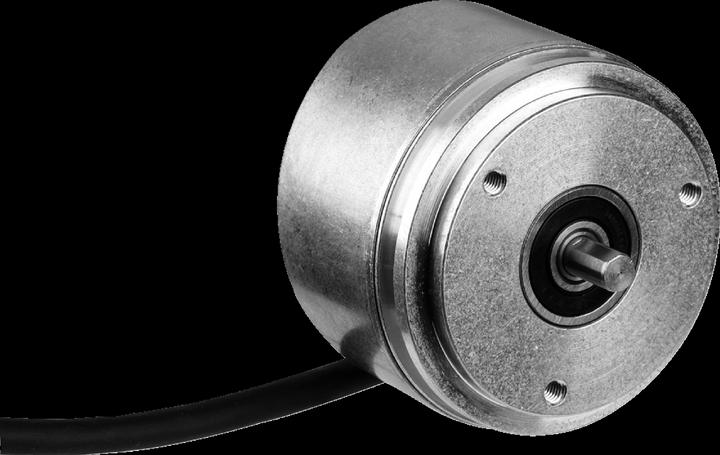

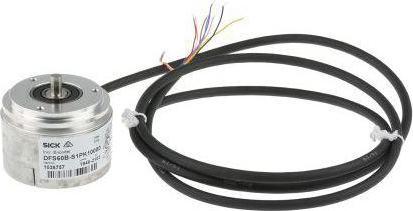

Sick Incremental Encoder, 10000 ppr, HTL, TTL Signal, Solid Type, 6mm Shaft

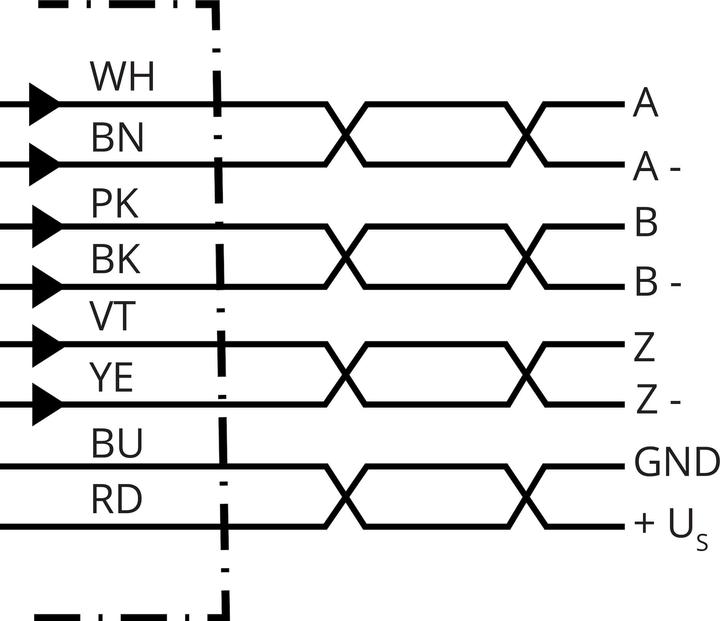

The DFS60B-S1PK10000 incremental encoder from Sick is a high-precision electronic module designed for a wide range of applications in automation technology. With a pulse count of 10,000 per revolution, this encoder offers excellent resolution and accuracy. The mechanical design features a full-shaft servo flange of 6 mm x 10 mm, ensuring a robust and reliable connection. The encoder supports both HTL and TTL signals and is programmable, making it versatile for various uses. The communication interface is suitable for voltages ranging from 4.5 V to 32 V, allowing for broad compatibility with different control systems. It connects via an 8-wire cable with a length of 1.5 m, simplifying installation. Additionally, the encoder is designed for a temperature range of -40 °C to +100 °C, making it suitable for demanding environments.

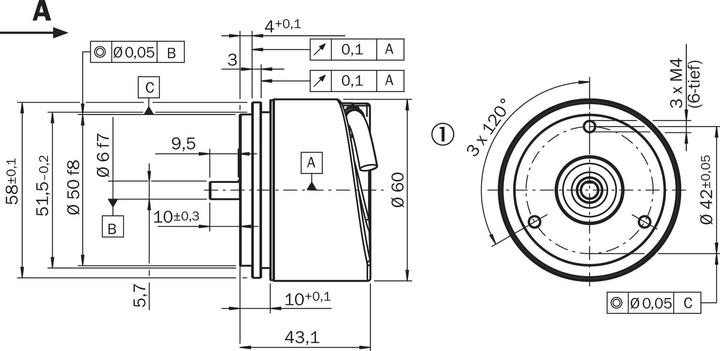

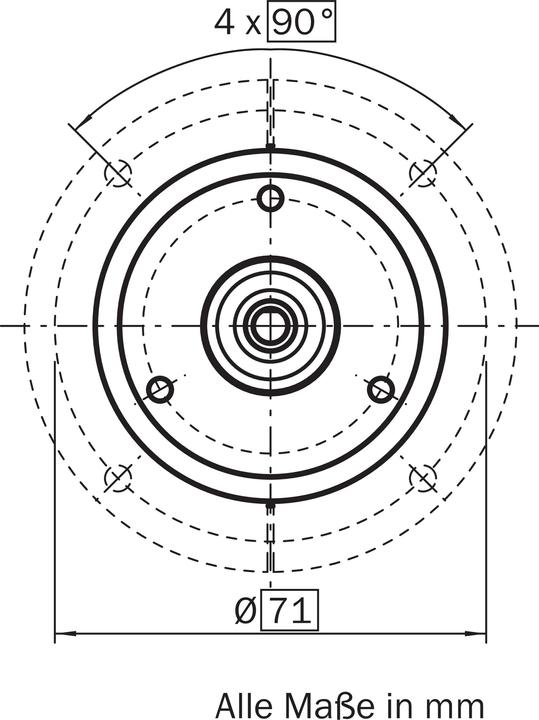

• Robust mechanical design with full-shaft servo flange
• Programmable communication interface for HTL and TTL signals
• Operating temperature range of -40 °C to +100 °C
• Bearing lifespan of 3.6 x 10^10 revolutions
• Protection class IP67 for housing side and IP65 for shaft side applications.
