Sick Fork sensor

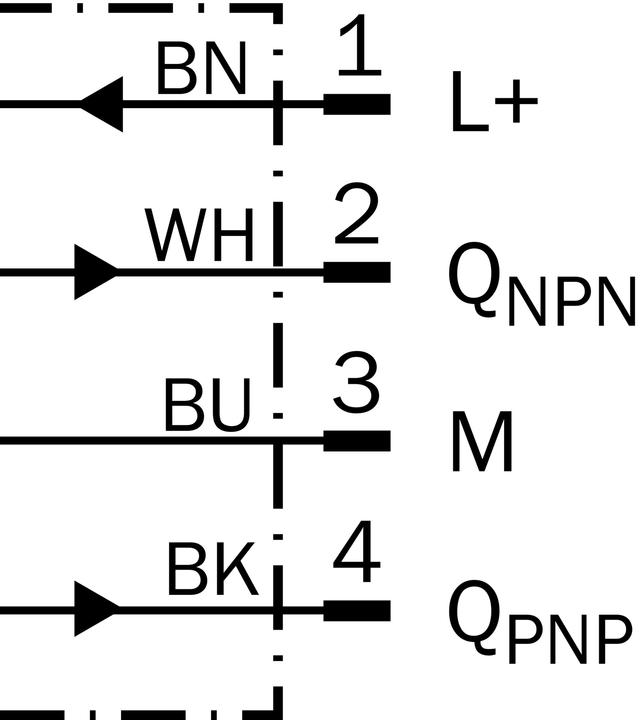

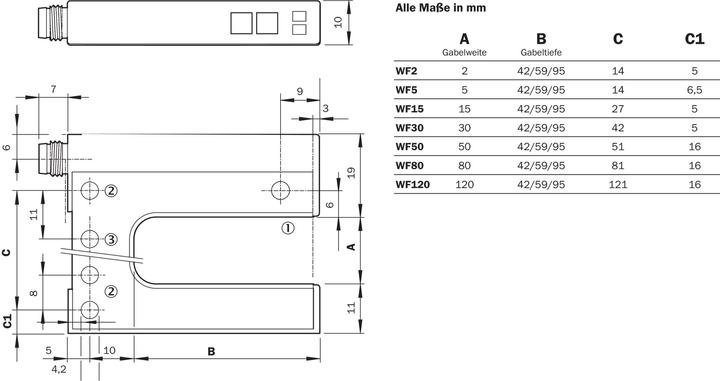

Sick fork sensor WF2-40B416 Manufacturer :Sick Designation :Fork sensor Type :WF2-40B416 Fork depth :42 mm Fork width :2 mm Max. output current :100 mA Output current :100 mA Version of interface for safety-related communication :other Version of electrical connection :M8 plug connector Version of switching output :PNP/NPN Equipment protection class :Protection class 3 Housing design :Special design Width of sensor :10 mm Height of sensor :32 mm Length of sensor :57 mm Switching function :Light/dark switching Material of housing :Metal Max. output current at safe output :100 mA Output current at safe output :100 mA Response time :0.1 ms Switching frequency :10000 Hz Voltage type :DC Sensor wavelength :850 nm Type of light :Infrared light Protection class (IP) :IP65 Rated control supply voltage Us at AC 50 Hz :10 V Sick fork sensor WF2-40B416: more details Fork sensors, WF, WF2-40B416, communication interface: -, Setting: Plus/minus button, Light emitter: LED, infrared, Fork width/depth: 2 mm, 42 mm, Smallest detectable object (MDO): 0.2 mm, Switching output: PNP/NPN, Switching mode: Light/dark switching, Connection type detail: M8 plug, 4-pin, Switching frequency: 10 kHz, Response time: 100 µs , EAN: 4047084160875.
