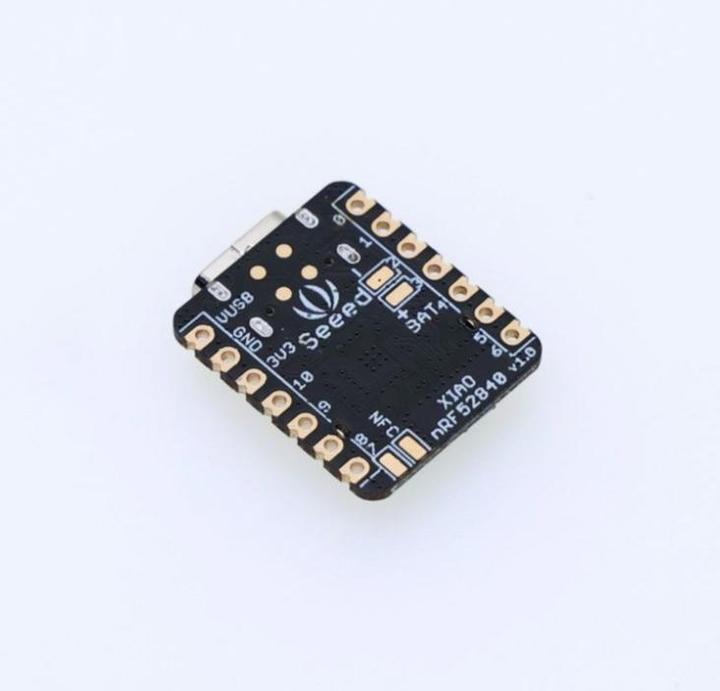

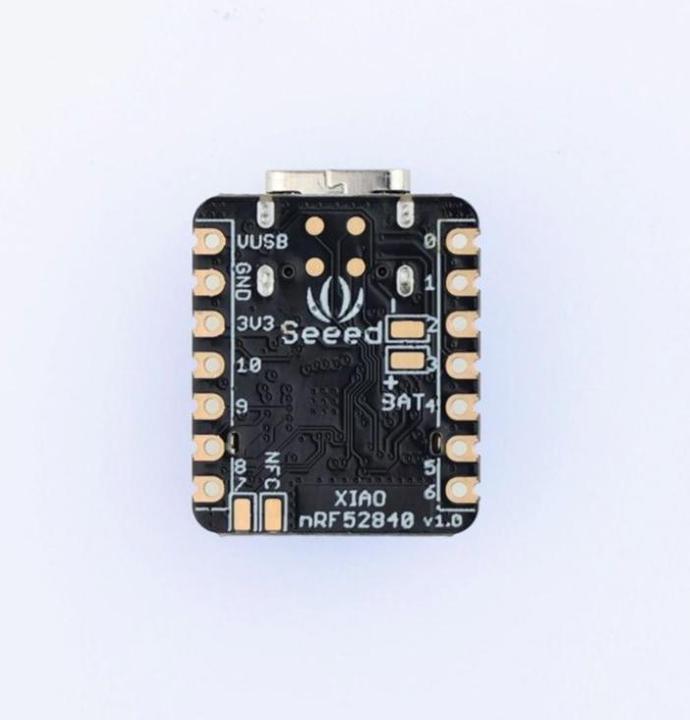

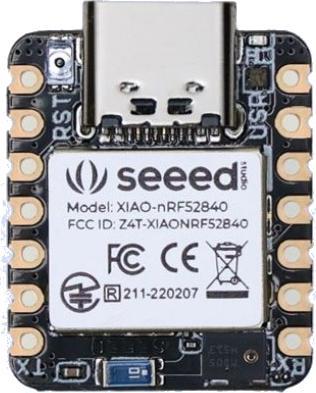

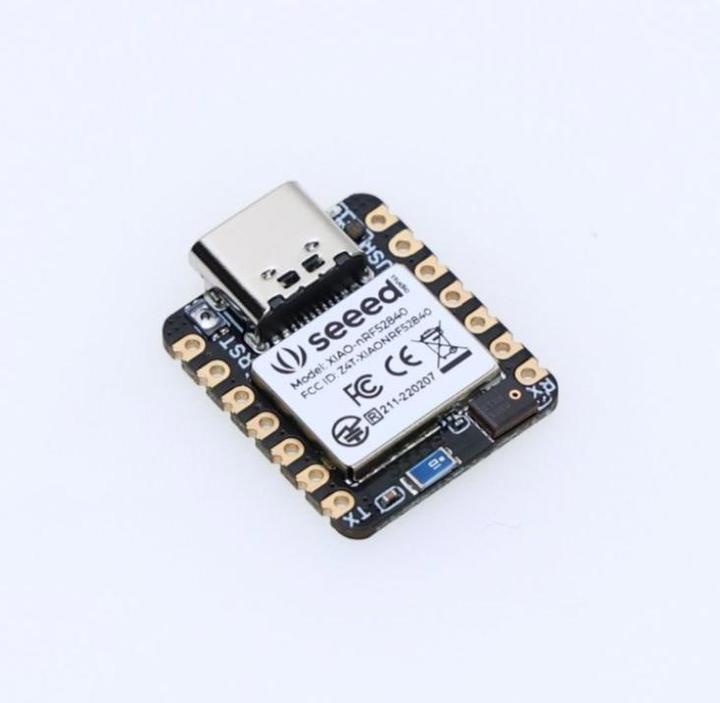

Seeed Studio XIAO nRF52840

This is a compact microcontroller board from Seeed Studio, based on the Nordic nRF52840 MCU. The nRF52840 features Bluetooth 5.0, NFC, and ZigBee connectivity. Along with the 32-bit ARM Cortex-M4 processor, the board can be integrated into many demanding applications. With dimensions of 17.5 x 21 mm, the board is very compact and can be easily incorporated into small devices or projects. It can be programmed using MicroPython, Arduino, or CircuitPython.

Features:

• Nordic nRF52840 MCU
• 32-Bit ARM Cortex-M4 processor
• Compact size of 17.5 x 21 mm
• Battery connector with charging chip
• USB-C
• Bluetooth 5.0, NFC, and ZigBee connectivity

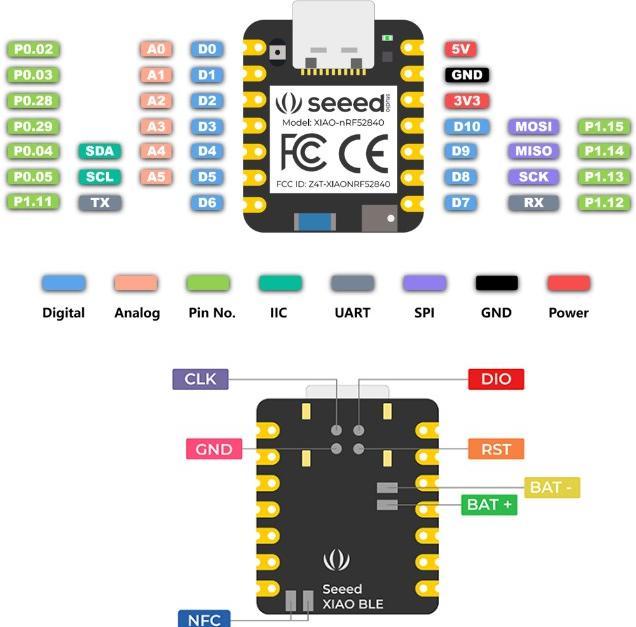

• UART, I2C, SPI, NFC, and SWD interfaces
• Reset and boot buttons

Technical Details:

• Manufacturer: Seedstudio
• Manufacturer SKU: 102010469
• Chip: nRF52840
• CPU: 32-Bit ARM Cortex-M4
• Clock frequency: 64 MHz
• SRAM: 256 KB
• Flash: 1 MB
• USB Interface: USB-C
• Voltage: 3.3 V
• I/O Pins: 11 x GPIO (PWM), 6 x ADC
• Buttons: 1 x Reset, 1 x Boot
• Dimensions: 17.5 x 21 x 5 mm
• Weight: 4 g

Included in the package:

• 1 x Seeed Studio XIAO nRF52840
• 2 x 7-pin header.
